SPECIFICATIONS
-

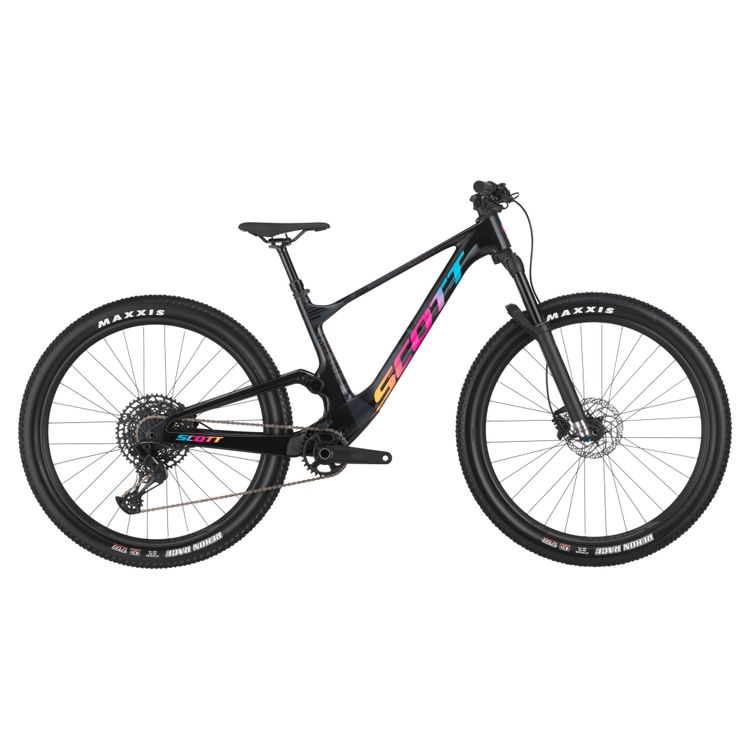

For the Spark RC 700, we took everything we loved about our World Cup and World Championship winning Spark RC, and made a version for younger riders. With a full carbon frame and kid-friendly, race-ready geometry, those with aspirations of the world stage needn’t look elsewhere in their hunt for glory.
Please note that bike specifications are subject to change without prior notice
-
Frame
Spark 27.5″ carbon HMF
Integrated suspension technology
Flex Pivot, adjustable head angle
Syncros cable integration system
BB92, UDH interface 12x148mm with 55mm chainline -
Fork
Manitou Machete Comp 27.5″
15×110, tapered, Air kids tune, 120mm travel -
Rear Shock
X-Fusion 02Pro R Trunnion KIDS
vertical valve position, rebound adjuster, Kids tune, 120mm travel, 165x45mm -
Rear Derailleur
SRAM SX Eagle 12 Speed
-
Shifters
SRAM NX Eagle Trigger, MMX -
Crankset
Prowheel DMJ 30T 2PC
Boost CL:55, 155mm -
BB-Set
Prowheel PF92 -
Chain
SRAM CN SX Eagle -
Cassette
SRAM NX Eagle, PG-1230, 11-50T, 12-Speed -
Brake Levers
Shimano BL-MT501 -
Brakes
Shimano BR-MT500 -
Rotor
SM-RT30, CL, 160mm -
Handlebar
Syncros Alloy 6061 DB
T shape Flat, 9°, 700mm
Syncros Performance XC lock-on grips -
H’stem
LEADTEC, 40mm, -/+7°
31.8mm clamp -
Seatpost
Syncros Dropper Ducan Kids Remote
31.6mm, 80mm, Kid centric custom tune, Remote Lever I-Spec II -
Seat
Syncros Future Pro -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Hub (Front)
Formula CL-811, 15x110mm -
Hub (Rear)
Formula CL-148S, 12x148mm -
Spokes
Stainless Black 15G, 1.8mm -
Rims
Syncros X-30SE, 32H, 30mm -
Front Tire
Maxxis Rekon Race, 27.5×2.35″, 120TPI, folding, EXO, TR -
Rear Tire
Maxxis Rekon Race, 27.5×2.35″, 120TPI, folding, EXO, TR -
Approx weight in KG
12.5 -
Approx weight in LBS
27.56 -
Range of use
test -
Max. System Weight
80kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
