SPECIFICATIONS
-

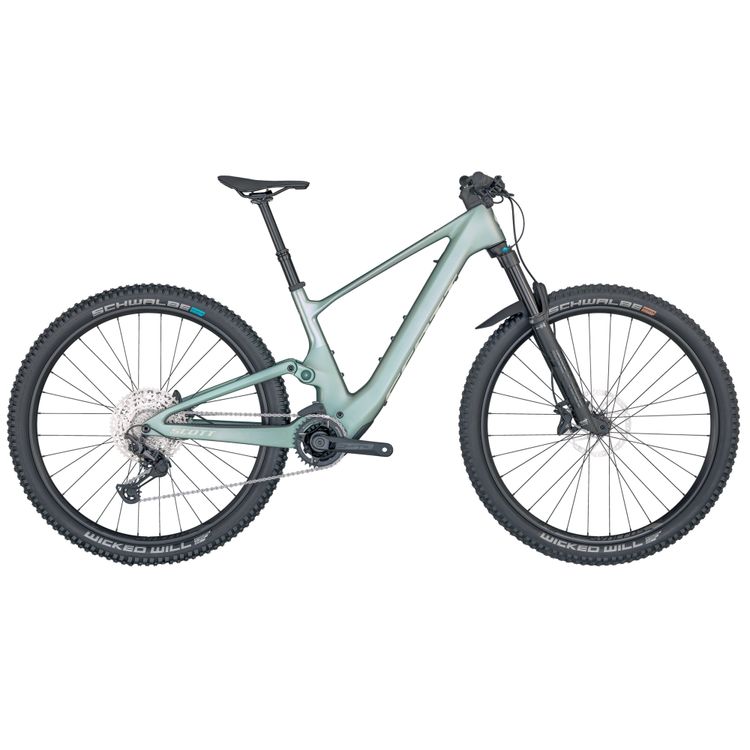

An E-MTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Kate’s speed.
Please note that bike specifications are subject to change without prior notice
-
Frame
Carbon HMF Main Frame / Alloy SST-CST
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline -
Travel
Front: 130mm / Rear: 130mm -
Fork
FOX 34 Float Rhythm Air Grip
3 modes / Kabolt 15x110mm axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 130mm travel -
Rear Shock
FOX NUDE 6T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Low Speed Adj. / Custom large Air volume / Reb. Adj.
Bearing Hardware / Travel 130-90-Lockout / T165X45mm
-
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes -
Drive Unit
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph -
Battery
TQ Internal 360Wh -
Display
TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app -
Charger
TQ 100-240V-4A -
Rear Derailleur
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed -
Shifters
Shimano Deore SL-M6100-IR / Rapidfire Plus
I-spec EV clamp -
Crankset
FSA Alloy crankset / 175mm / 34T -
Chainguide
e*thirteen / e*spec Slider -
Chainring
Scott custom spider / FSA 12Speed 34T chainring -
Chain
Shimano CN-M6100 -
Cassette
Shimano CS-M6100 / 10-51T -
Brakes
Shimano Deore M6120 4 Piston Disc -
Rotor
Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm -
Handlebar
Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Performance XC lock-on grips -
H’stem
Syncros DC 2.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8″ -
Seatpost
Syncros Duncan Dropper Post 2.0
31.6mm / S & M size 125mm / L size 150mm -
Seat
Syncros Savona 1.5
CRMO rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Hub (Front)
Formula CL-811 / 15x110mm -
Hub (Rear)
Formula CL-148M / 12x148mm / Micro Spline
Syncros Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools -
Spokes
Stainless Black 15G / 1.8mm -
Rims
Syncros X-30SE / 32H / 30mm
Tubeless ready -
Front Tire
Schwalbe Wicked Will 29×2.4″ EVO
Super Race / TLE / 67EPI / Addix Speed Soft -
Rear Tire
Schwalbe Wicked Will 29×2.4″ EVO
Super Race / TLE / 67EPI / Addix Speed Grip -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
