Descriere
SPECIFICATIONS
-

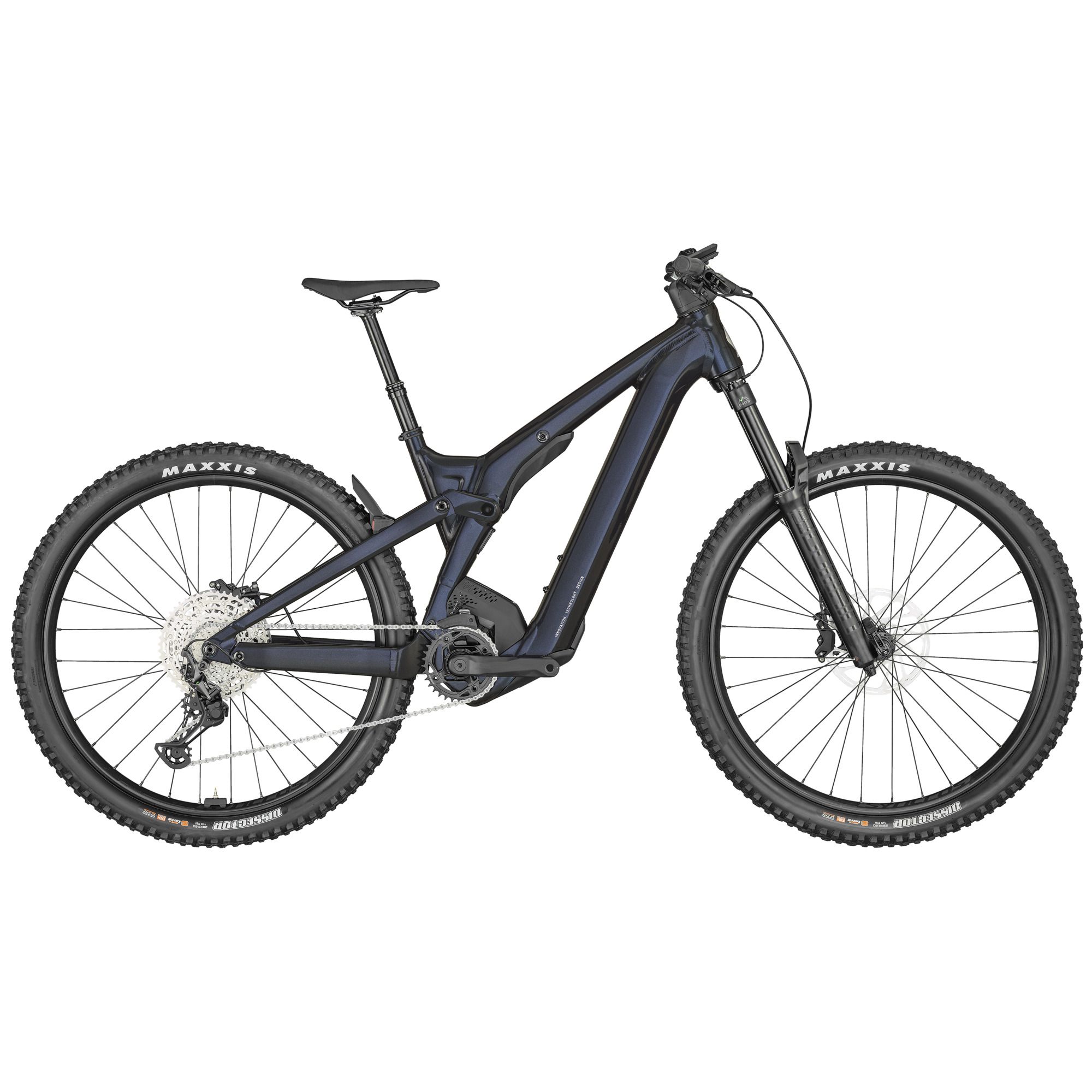

The Patron eRIDE 920 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE – boss the trails.
Please note that bike specifications are subject to change without prior notice
-
Frame
Alloy Frame & Link
Virtual 4 link kinematic VLK
29×2.6 / Boost 148x12mm UDH
160mm travel / Bosch SmartSystem / Integr. removable Battery
1.8″ Headtube
Central Kickstand Mount
Integr. Cable -
Travel
Front: 160mm / Rear: 160mm -
Fork
RockShox Domain Air
15x110mm QR axle / 1.8″ Tapered Steerer
Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike -
Rear Shock
FOX Float EVOL eRIDE Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mm
-
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 modes -
Drive Unit
Bosch Performance CX
EU: 25kmh / INT: 20mph -
Battery
PowerTube 750Wh -
Display
Bosch LED Remote & Kiox 300 -
Charger
4A Charger -
Rear Derailleur
Shimano XT / 12 Speed -
Shifters
Shimano SL-M6100 -
Crankset
FSA CK-745 165mm / 34T -
Chainguide
e*thirteen / e*spec Slider -
Chainring
FSA W0138+WB499 / 34T / Steel -
Chain
Shimano CN-M6100 -
Cassette
Shimano CS-M6100 / 10-51T -
Brakes
SRAM DB8 4 Piston Disc -
Rotor
SRAM Centerline CL Rotors 200mm F&R -
Handlebar
Syncros Hixon 2.0 / Alloy 6061D.B.
12mm rise / 9° / 780mm
Syncros Endurance lock-on grips -
H’stem
Syncros AM2.0 / 6061 Alloy
31.8mm / 4° / 1 1/8″ -
Seatpost
Syncros Duncan Dropper Post 2.5
Size S 125mm / Size M 150mm / Size L 170mm Size XL 200mm -
Seat
Syncros Tofino 2.5 Regular -
Headset
Acros / 1.8″
ZS66 OD74 / integr. Cable -
Hub (Front)
Shimano HB-MT410-B CL / 15x110mm -
Hub (Rear)
Shimano FH-MT410-B CL / Boost 12x148mm -
Spokes
Stainless Black -
Rims
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
Front Tire
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Rear Tire
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Lights
Syncros integrated rear fender light
Front Light Cable pre-installed -
Approx weight in KG
26.5 (with tubes) -
Approx weight in LBS
58.42 (with tubes) -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
