SPECIFICATIONS
-

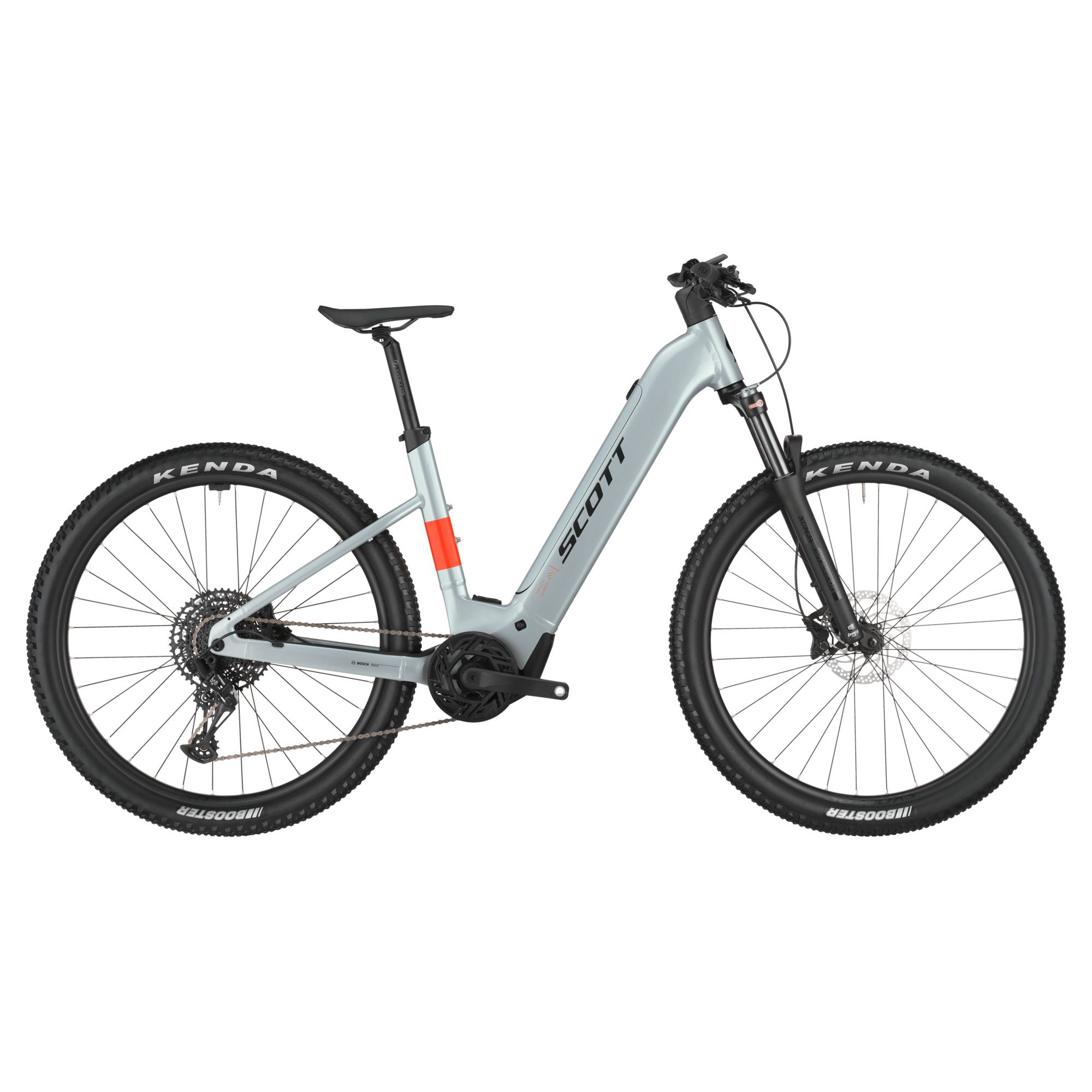

More autonomy, more connectivity and the latest Bosch technology featured in an accessible package. From off road commuting to your local trails, the Aspect is all about versatility and fun.
Please note that bike specifications are subject to change without prior notice
-
Frame
Alloy S-XL=29″, 6061 Alloy custom butted tubing
Top extraction battery
UDH Interface, 12x148mm with 52mm Chainline -
Travel
120mm -
Fork
SR Suntour XCM34 RL Coil, Tapered 120mm Travel, 15×110 bolt Axle, Remote Lock Out -
Remote System
SR Suntour Remote
-
Drive Unit
Bosch Performance CX, EU: 25kmh -
Battery
PowerTube 600Wh -
Display
Bosch LED Remote
Intuvia 100 -
Charger
2A Charger -
Rear Derailleur
SRAM NX Eagle, 12 Speed -
Shifters
SRAM SX Eagle Single Click Trigger -
Crankset
FSA CK-220
165mm -
Chainring
SRAM CR T-Type 36T DM w/Chain Guard -
Chain
SRAM SX Eagle -
Cassette
SRAM PG1210, 11-50 -
Brakes
Shimano BR-MT420 Disc Brakes -
Rotor
Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 180mm -
Handlebar
Syncros 3.0 720mm, 31.8mm, 9°, 12mm rise
Syncros Comfort lock-on grips -
H’stem
Syncros AM2.0, 6061 Alloy
31.8mm, 0° -
Seatpost
Syncros M3.0, 31.6mm
350mm -
Seat
Syncros Tofino E 2.0 -
Headset
Acros, 1.5″- 1.5″
semi integ. OD 50/61mm, ID 44/55mm -
Hub (Front)
Formula CL-811, 15x110mm -
Hub (Rear)
Formula CL-148S, 148x12mm -
Spokes
Stainless Black -
Rims
Cross X19, 32H, 30mm, Pin Joint
Tubeless ready -
Front Tire
Kenda Booster 29×2.6″, 30TPI -
Rear Tire
Kenda Booster 29×2.6″, 30TPI -
Lights
Bosch Light Cable pre-installed F&R -
Approx weight in KG
27.7 -
Approx weight in LBS
61.07 -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
