SPECIFICATIONS
-

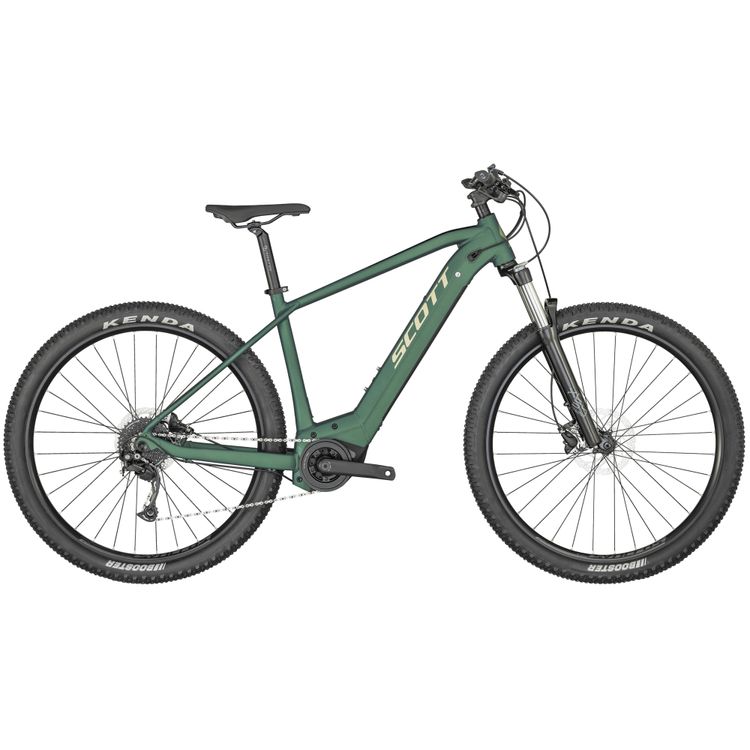

The SCOTT Aspect eRIDE 950 features proven electric assist technology in a comfortable off-road package. With an integrated battery, and a Bosch drive system, the Aspect eRIDE will give you hours of trail riding energy.
Please note that bike specifications are subject to change without prior notice
-
Frame
Alloy frame
Tapered Headtube E2
Custom butted tubing / internal cable routing
Bosch Gen3 / Integr. removable Battery / Boost 148x12mm
DO Kickstand mount / Range Booster Ready -
Travel
120mm -
Fork
SR Suntour XCM34 Coil
15x110mm QR axle / Tapered Steerer
Remote Lockout / 120mm travel -
Remote System
SR Suntour Remote
-
Drive Unit
Bosch Active Line Plus
EU: 25kmh / INT: 20mph -
Battery
PowerTube 500Wh -
Display
Bosch Purion -
Charger
2A Charger -
Rear Derailleur
Shimano RD-M3100 / 9 Speed -
Shifters
Shimano SL-M2000 -
Crankset
FSA CK-200 / 165mm -
Chainring
FSA WB437 32T w/CG -
Chain
KMC e9S -
Cassette
Shimano CS-HG200-9 ACERA 11-36 -
Brakes
Shimano BR-MT200 Disc -
Rotor
Front: SM-RT30 CL 180mm / Rear: RT-EM300 CL 180mm -
Handlebar
Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise
Syncros Comfort lock-on grips -
H’stem
Syncros 3.0 / 7° / Black -
Seatpost
Syncros 3.0 / 31.6mm -
Seat
Syncros ER2.5 -
Headset
Syncros OE / Tapered 1.5″-1 1/8″
semi integ. OD 50/62mm / ID 44/56mm -
Hub (Front)
Shimano HB-MT400-B CL / 15x110mm -
Hub (Rear)
Shimano FH-MT400-B CL / Boost 12x148mm -
Spokes
Stainless Black -
Rims
Syncros X18 / 32H / 30mm / Pin Joint -
Front Tire
Kenda Booster 29×2.6″ / 30TPI -
Rear Tire
Kenda Booster 29×2.6″ / 30TPI -
Lights
Bosch Light Cable pre-installed F&R -
Approx weight in KG
24.3 -
Approx weight in LBS
53.57 -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
