Descriere
SPECIFICATIONS
-
Cycling everyday is a total breeze.

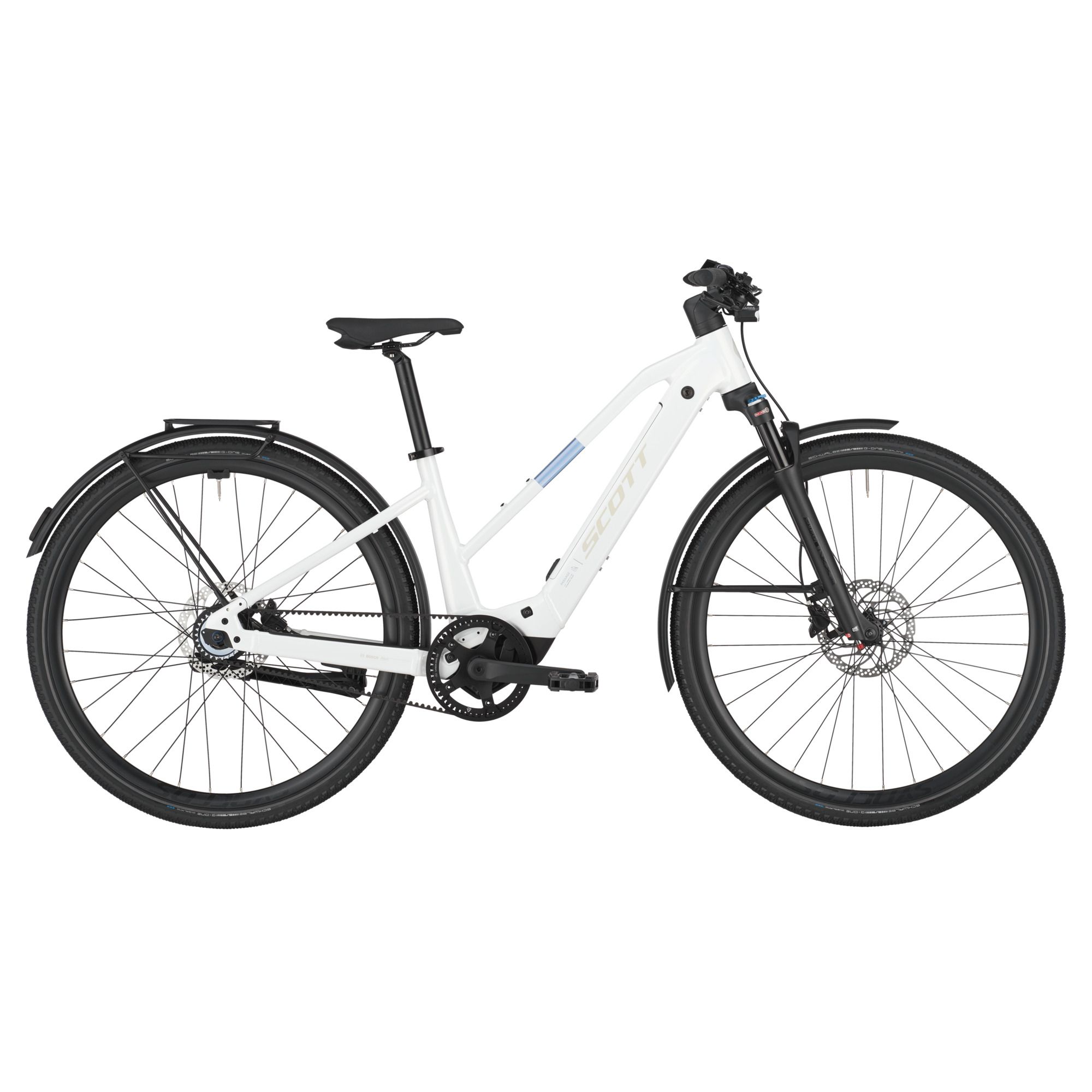

Passage eRIDE is the ALL-NEW SCOTT electric urban bike designed for easy, hassle-free riding in the city.
Equipped with the lightweight Bosch SX motor and 400Wh battery it gives you a feeling of weightlessness as you ride, while giving you the power to go further. A belt driven drivetrain combined with an internal gear hub results in great reliability and low maintenance. The minimalistic rear rack completes the picture allowing you to bring whatever you need on your journey.
Your Passage through the city just became easier.Please note that bike specifications are subject to change without prior notice
-
Frame
Alloy S-L=29″ / 6061 Alloy custom butted tubing
Top extraction battery -
Travel
75mm -
Fork
SR Suntour NRX32-E Air LO R / Tapered / 15×100 bolt Axle / Remote Lock Out / Alloy Steerer / 75mm Travel -
Drive Unit
Bosch Performance SX
EU: 25kmh
-
Battery
Compact Tube 400Wh -
Display
Bosch Purion 200 -
Charger
2A Charger -
Shifters
Shimano Alfine SL-S503 Rapid Fire Plus -
Crankset
FSA CK-220 170mm -
Chainring
Gates CDC 52T w/Guard -
Chain
Gates CDC 125T -
Cassette
Gates CDC 26T -
Brakes
Shimano BR-MT200 Disc -
Rotor
Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm -
Handlebar
Syncros Welded Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount -
Seatpost
Syncros M3.0 / 31.6 -
Seat
Syncros Capilano -
Headset
Acros / 1.5″- 1.5″
semi integ. OD 50/61mm / ID 44/55mm -
Hub (Front)
Shimano HBTC50015B CL / 15x100mm -
Hub (Rear)
Shimano Nexus 8 Speed -
Spokes
Black Spokes -
Rims
Syncros X15 Disc -
Front Tire
Schwalbe G-One Overland 365 Performance
700x45C -
Rear Tire
Schwalbe G-One Overland 365 Performance
700x45C -
Lights
Lezyne Fusion E550SM front light
Rear Supernova TL3Z -
Rack
Racktime Micro Rack SnapIt 2.0 8KG -
Pedals
Marwi SP-827 -
Extras
Alumee alloy profile Fender / Hebie Kickstand -
Approx weight in KG
21.7 -
Approx weight in LBS
47.84 -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
