SPECIFICATIONS
-
Cycling everyday is a total breeze.

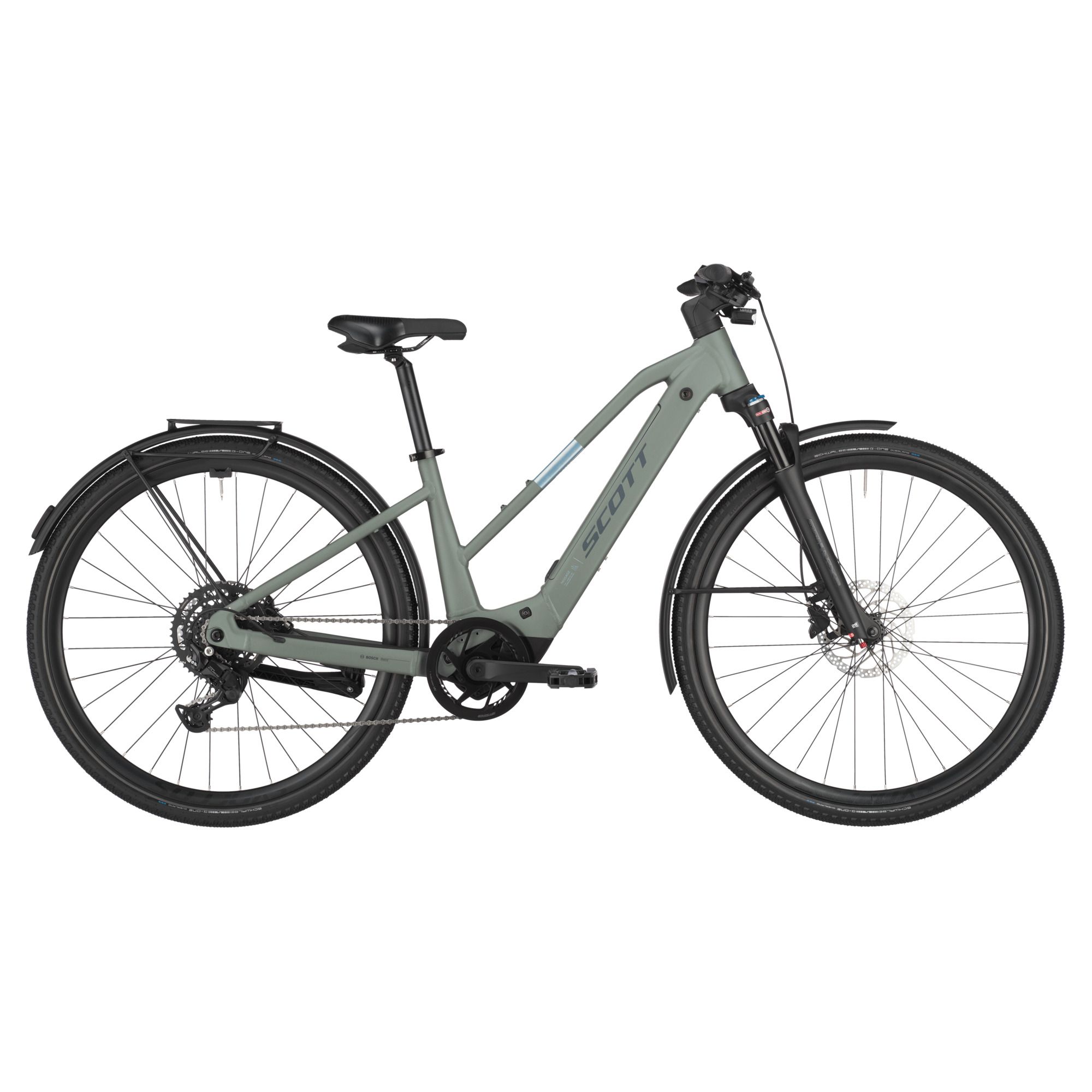

Passage eRIDE is the ALL-NEW SCOTT electric urban bike designed for easy, hassle-free riding in the city.
Equipped with the lightweight Bosch SX motor and 400Wh battery it gives you a feeling of weightlessness as you ride, while giving you the power to go further. A clean cockpit and the minimalistic rear rack complete the picture, adding even more style to Passage.
Your Passage through the city just became easier.Please note that bike specifications are subject to change without prior notice
-
Frame
Alloy S-L=29″ / 6061 Alloy custom butted tubing
Top extraction battery -
Travel
75mm -
Fork
SR Suntour NRX32-E Air LO R / Tapered / 15×100 bolt Axle / Remote Lock Out / Steel Steerer / 75mm Travel -
Drive Unit
Bosch Performance SX
EU: 25kmh
-
Battery
Compact Tube 400Wh -
Display
Bosch Purion 200 -
Charger
2A Charger -
Rear Derailleur
Shimano CUES RDU4000GS 9 Speed -
Shifters
Shimano CUES SLU4009RC / 9 Speed -
Crankset
FSA CK-220 170mm -
Chainguide
Syncros -
Chainring
FSA 38T -
Chain
Shimano LG500 -
Cassette
Shimano LG300 / 11-46T -
Brakes
Shimano BR-MT200 Disc -
Rotor
Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm -
Handlebar
Syncros Welded Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount -
Seatpost
Syncros M3.0 / 31.6 -
Seat
Syncros Capilano -
Headset
Acros / 1.5″- 1.5″
semi integ. OD 50/61mm / ID 44/55mm -
Hub (Front)
Shimano HBTC50015B CL / 15x100mm -
Hub (Rear)
Shimano FHTC500HMB CL / 12x142mm -
Spokes
Black Spokes -
Rims
Syncros X15 Disc -
Front Tire
Schwalbe G-One Overland 365 Performance
700x45C -
Rear Tire
Schwalbe G-One Overland 365 Performance
700x45C -
Lights
Lezyne Fusion E550SM front light
Rear Supernova TL3Z -
Rack
Racktime Micro Rack SnapIt 2.0 8KG -
Pedals
Marwi SP-827 -
Extras
Alumee alloy profile Fender / Hebie Kickstand -
Approx weight in KG
21.8 -
Approx weight in LBS
48.06 -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
