Descriere
SPECIFICATIONS
-

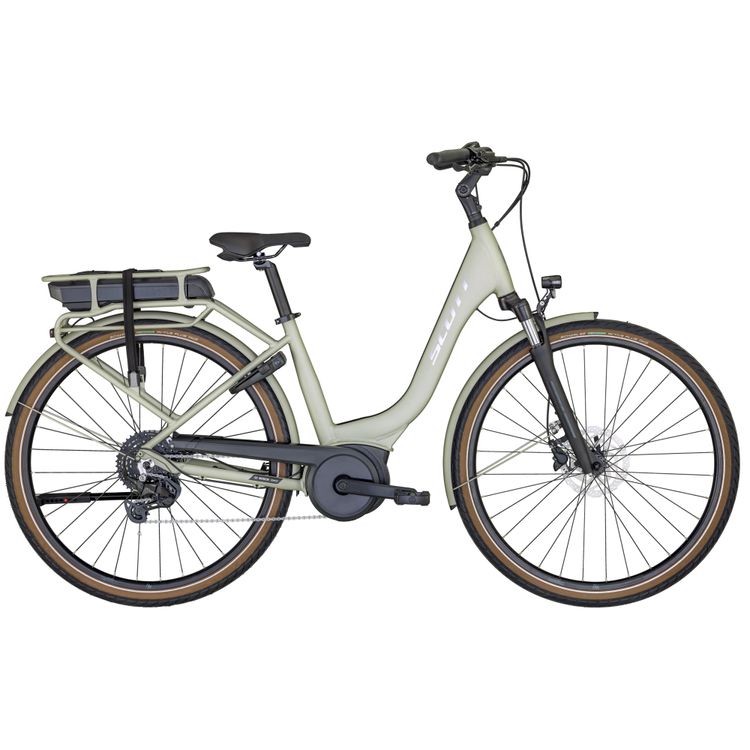

The Sub Active eRIDE 20 rack provides outstanding comfort and style. Thanks to the wide saddle and the high cockpit, never feel uncomfortable on your bike. The drop of the downtube also makes getting on or off your bike as easy as can be while the lights and the rack make it city ready.
Please note that bike specifications are subject to change without prior notice
-
Frame
6061 Alloy custom butted tubing
Bosch 400Wh Rack Battery / Internal cable routing -
Fork
SUNTOUR NEX-E25 DS QR 700C / 63mm Travel -
Drive Unit
Bosch Active Plus
EU: 25kmh -
Battery
PowerPack Battery 400Wh
-
Display
Purion -
Charger
2A Charger -
Rear Derailleur
Shimano CUES ARDU4000GS 9 Speed -
Shifters
Shimano CUES ASLU40009RC 9 Speed -
Crankset
Miranda 172
5mm -
Chainring
38T Chainflow -
Chain
KMC E9s NPBK -
Cassette
Shimano CS-LG3009 11-41T -
Brakes
Shimano BR-M200 Disc -
Rotor
180/F SM-RT10 and 160/R SM-RT10 -
Handlebar
HL NR-AL-16 W: 610mm Comfort -
H’stem
Syncros UC 3.0 adjustable -
Seatpost
Syncros 3.0 / 31.6mm / 350mm -
Seat
Syncros Capilano -
Headset
GW semi integrated -
Hub (Front)
Shimano HB-QC300BAL 32H QR CL -
Hub (Rear)
Shimano FH-FHQC300HMBZ 32H QR CL -
Spokes
BLACK spokes * F: 14G / R: 13G -
Rims
Cross X17 Disc 32h -
Front Tire
Schwalbe Energizer Active Plus 700x50c -
Rear Tire
Schwalbe Energizer Active Plus 700x50c -
Lights
Front: Axa Compactline 35 / Rear: Axa -
Rack
Weldon carrier w/ spring clamp -
Pedals
Syncros SP-828 -
Extras
Abus 4750L ART approved / Battery Lock -
Accessories
Curana wide extruded fenders
Ursus Mooi Rear kickstand -
Approx weight in KG
26.30 -
Approx weight in LBS
57.98 -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
