SPECIFICATIONS
-

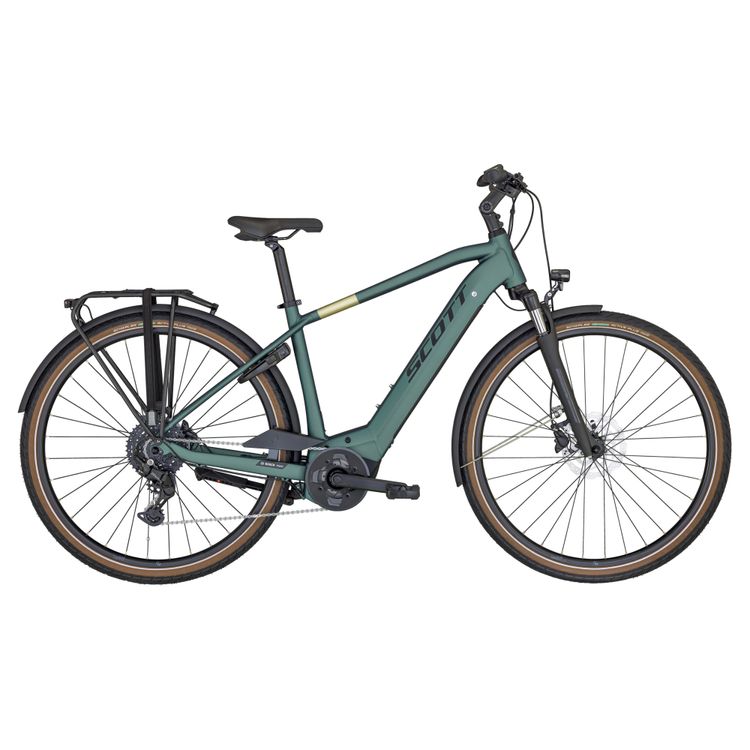

The Sub Active eRIDE provides outstanding comfort and simplicity. Thanks to the wide saddle and the high cockpit, never feel uncomfortable on your bike. The lights, the rack and the fenders makes it city ready.
Please note that bike specifications are subject to change without prior notice
-
Frame
6061 Alloy custom butted tubing
Bosch 400Wh integrated Battery / Internal cable routing -
Fork
SUNTOUR NEX-E25 DS QR 700C / 63mm Travel -
Drive Unit
Bosch Active
EU: 25kmh / US: 20mph -
Battery
PowerTube 400Wh
-
Display
Purion -
Charger
2A Charger -
Rear Derailleur
Shimano CUES ARDU4000GS 9 Speed -
Shifters
Shimano CUES ASLU40009RC 9 Speed -
Crankset
Miranda 172
5mm -
Chainring
38T Chainflow / Chainprotector -
Chain
KMC eGLIDE -
Cassette
Shimano CS-LG3009 11-41T -
Brakes
Shimano BR-M200 Disc -
Rotor
180/F SM-RT10 and 160/R SM-RT10 -
Handlebar
Syncros UC3.0 680mm / 10° bend -
H’stem
Syncros UC 3.0 adjustable -
Seatpost
Syncros 3.0 / 31.6mm / 350mm -
Seat
Syncros Capilano -
Headset
GW semi integrated -
Hub (Front)
Shimano HBMT200B 32H QR CL -
Hub (Rear)
Shimano FHMT200BB41B 32H QR CL -
Spokes
BLACK spokes * F: 14G / R: 13G -
Rims
Cross X17 Disc 32h -
Front Tire
Schwalbe Energizer Active Plus 700x50c -
Rear Tire
Schwalbe Energizer Active Plus 700x50c -
Lights
Front: Axa Compactline 35 / Rear: Axa -
Rack
Racktime w/ spring clamp SnapIt 2.0 -
Pedals
Syncros SP-828 -
Extras
Abus 4750L ART approved / Battery Lock -
Accessories
Curana wide extruded fenders
Ursus Mooi Central kickstand -
Approx weight in KG
26.20 -
Approx weight in LBS
57.76 -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
