SPECIFICATIONS
-

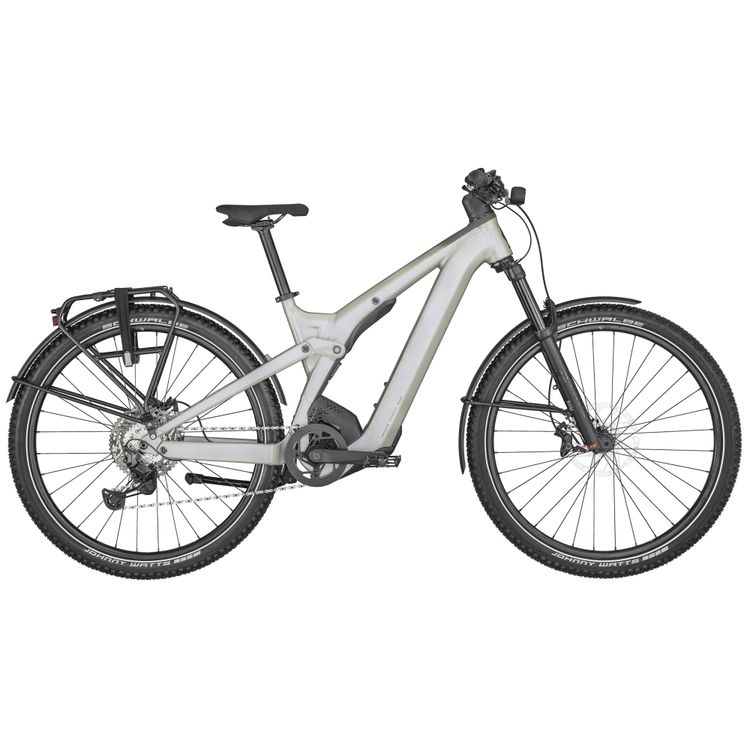

The Axis eRIDE FS 10 is the ultimate bike for all terrain. With an unprecedented level of integration and its unique design, the Axis will push you to your own limits; and thanks to the full suspension and the Bosch Smart System, it is the missing link between touring and mountain e-biking. One bike to look after everything!
Please note that bike specifications are subject to change without prior notice.
-
Frame
Alloy S-XL=29″ / Virtual 4 link kinematic VLK
29″ / Boost 148x12mm
140mm travel / Bosch 750Wh Integrated Battery
internal cable routing -
Fork
FOX AWL / Tapered / S-XL 29″ / 140mm Travel / Stealth / Remote Lock Out -
Rear Shock
FOX Float eRIDE Trunnion 205x55mm -
Remote System
SCOTT TwinLoc Remote
-
Drive Unit
Bosch Performance CX
EU: 25kmh -
Battery
PowerTube 750Wh -
Display
Bosch LED Remote & Kiox 300 -
Charger
4A Charger -
Rear Derailleur
Shimano RD M8130SGS Linkgilde / 11 Speed -
Front Derailleur
SCOTT Chainguide -
Shifters
Shimano XT RD M8130SGS Linkgilde / 11 Speed -
Crankset
FSA CK-745 IS GEN4 MTB 170mm -
Chainring
38T FSA Mega Tooth Boost Spider -
Chain
KMC E11S -
Cassette
Shimano CS-LG600-11 11-50T 11S -
Brakes
Shimano BR-MT520 4 Piston Disc Brakes -
Rotor
203/F SM-RT64 CL and 203/R RT-EM600 CL rotor -
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise
Syncros Lock On Grip -
H’stem
Syncros FL3.0 with front Light mount and Kiox 300 mount -
Seatpost
Syncros FL3.0 / 31.6 -
Seat
Syncros Capilano -
Headset
Acros / 1.8″
ZS66 OD74 / integr. Cable -
Hub (Front)
Formula CL-811 / 15x110mm -
Hub (Rear)
Formula MSC-148S / Boost 12x148mm -
Spokes
Sapim double butted -
Rims
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
Front Tire
Schwalbe Johnny Watts 29×2.35″ Wired -
Rear Tire
Schwalbe Johnny Watts 29×2.35″ Wired -
Lights
Supernova integrated M99 mini Pure-25 / 600 Lumen front light
Rear Supernova Taillight -
Rack
Axis EVO by Racktime SnapIt 2.0 15KG -
Pedals
VP VPE-506 -
Extras
Alumee alloy profile Fender / Ursus Kickstand -
Approx weight in KG
28 -
Approx weight in LBS
61.73 -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
