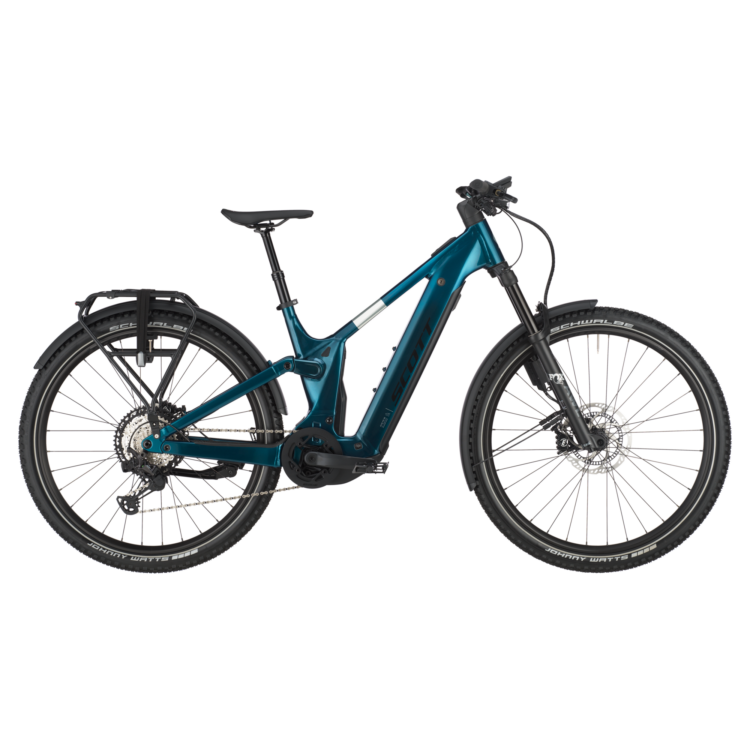

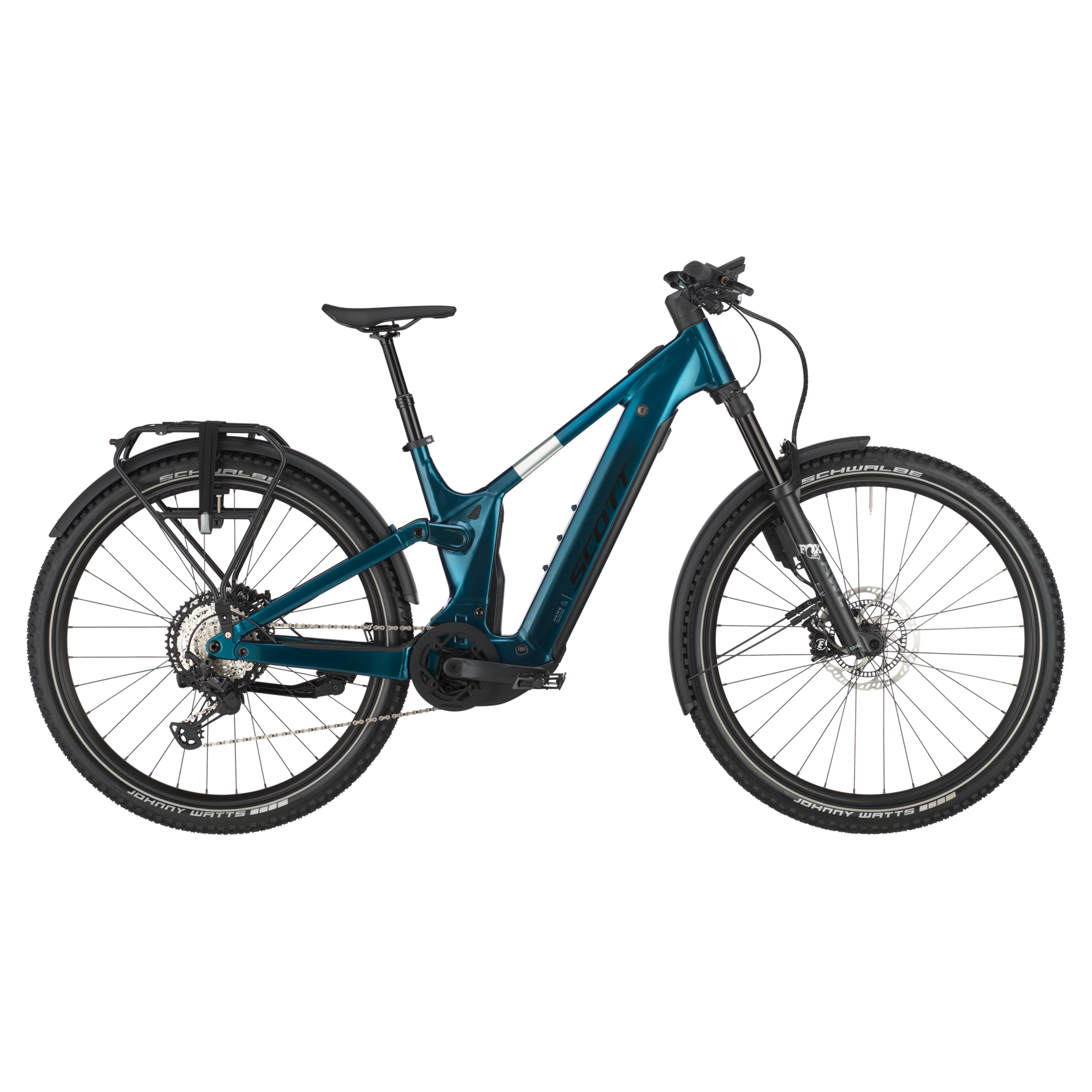

Explore new places. The ALL-NEW Axis FS eRIDE is the ultimate full suspension electric adventure bike. Ultra-capable and comfortable in rough terrain, while also ready to take on the grocery shopping. It’s equipped with the latest Bosch Performance CX drive unit and 800Wh battery technology.
The only limit is your imagination with Axis FS.Please note that bike specifications are subject to change without prior notice
-
Frame
Alloy S-XL=29″
Integrated Suspension Technology
Virtual 4 Link kinematic, Adjustable head angle
Syncros Cable Integration System
Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready -
Travel
Front: 140mm, Rear: 140mm -
Fork
FOX AWL 34, Grip Remote Damper 3P, 4QR Axle 15x110mm axle
44mm offset, tapered steerer, 140mm travel -
Rear Shock
FOX Float eRIDE 185×47
5mm, 3P, Remote Ready, 140mm Travel
-
Remote System
SCOTT TwinLoc Remote 3P -
Drive Unit
Bosch Performance CX, EU: 25kmh -
Battery
PowerTube 800Wh -
Display
Bosch System Controller
Kiox 300
Mini remote -
Charger
4A Charger -
Rear Derailleur
Shimano XT RD M8100SGS 12 Speed -
Front Derailleur
SCOTT Chainguide -
Shifters
Shimano XT SL-M8100IR -
Crankset
FSA CK-745 165mm -
Chainring
FSA 36T w/Chain Guard -
Chain
KMC E12S -
Cassette
Shimano CS-M8100-12 10-51T -
Brakes
Magura MTC Allroad Disc Brakes, Bosch ABS Trail -
Rotor
Front: MDR-C CL 203mm, Rear: MDR-C CL 203mm -
Handlebar
Syncros Forged Alloy Combo 680mm, Back Sweep 9°, Up Sweep 8°, 70mm, with front Light mount and Kiox 300 mount -
Seatpost
Syncros Duncan Dropper Post 2.5
31.6mm, S&M 361mm, L&XL 403mm -
Seat
Syncros Tofino E 2.0 -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
Stainless, +-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Hub (Front)
Formula CL-811, 15x110mm -
Hub (Rear)
Formula CL-148M, Boost 12x148mm -
Spokes
Sapim double butted -
Rims
Syncros MD30, 32H, 30mm, Pin Joint
Tubeless ready -
Front Tire
Schwalbe Advancer 60-622 Wired -
Rear Tire
Schwalbe Advancer 60-622 Wired -
Lights
Lezyne Fusion E550SM front light
Rear Supernova Taillight -
Rack
Racktime SnapIt 2.0 15KG -
Pedals
VP VPE-506 -
Extras
Curana alloy profile Fender
Ursus Kickstand -
Approx weight in KG
29 -
Approx weight in LBS
63.93 -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
