SPECIFICATIONS
-

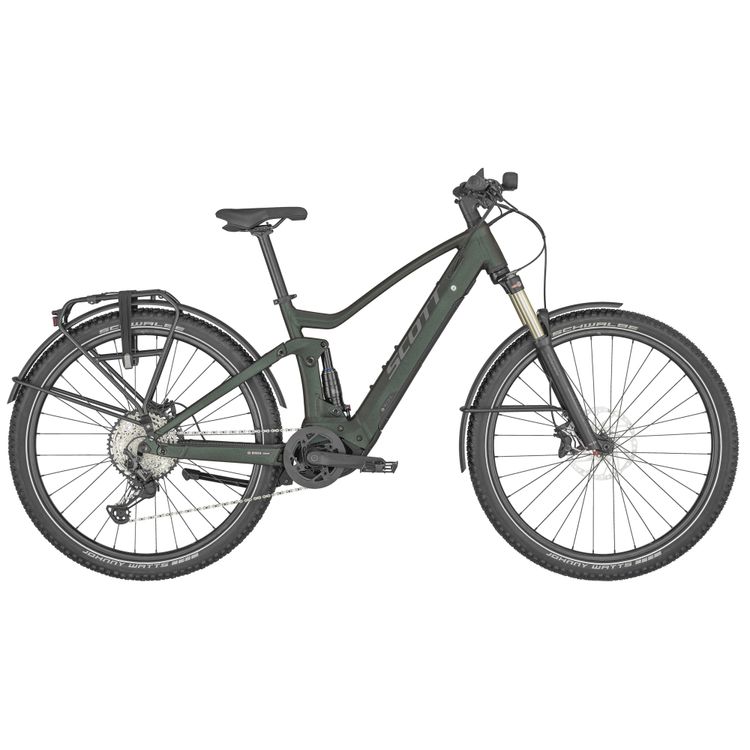

One bike to look after everything! Able to bring you comfort on the oldest cobbled streets fun on gravel roads and with a rack, lights and fenders convenient for day to day life. The Axis eRIDE FS, more than just an electric assist bike.
Please note that bike specifications are subject to change without prior notice.
-
Frame
Virtual 4 link kinematic VLK
29″ / Boost 148x12mm
130mm travel / Bosch Integrated Battery
Range Booster Ready -
Fork
Suntour XCR34 / Tapered / S-XL 29″ / 130mm Travel / Maxle Lite / Remote Lock Out -
Rear Shock
X-Fusion NUDE Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control -Descend
Reb. Adj.
Travel 130-85-Lockout / 185X50mm -
Remote System
SCOTT TwinLoc Remote
-
Drive Unit
Bosch Performance CX BES2 -
Battery
PowerTube 625Wh -
Display
Kiox Display -
Charger
4A Charger -
Rear Derailleur
Shimano RD M8100SGS / 12 Speed -
Front Derailleur
SCOTT Chainguide -
Shifters
Shimano Deore Trigger SL-M6100RA -
Crankset
FSA CK-745 IS GEN4 MTB 170mm -
Chainring
38T FSA Mega Tooth Boost Spider -
Chain
KMC E12S -
Cassette
Shimano CS-M7100-12 10-51T 12S -
Brakes
Shimano BR-MT520 4 Piston -
Rotor
203/F SM-RT64 CL and 203/R RT-EM600 CL rotor -
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise
Syncros Lock On Grip -
H’stem
Syncros FL3.0 with front Light mount and Kiox mount -
Seatpost
Syncros FL3.0 / 31.6 -
Seat
Syncros Capilano -
Headset
Syncros FL2.0 Press Fit E2 / Tapered 1.5″-1 1/8″
OD 50/62mm / ID 44/56mm -
Hub (Front)
Formula CL-811 / 15x110mm -
Hub (Rear)
Formula MSC-148S / Boost 12x148mm -
Spokes
Sapim double butted -
Rims
Syncros MAXX Disc / 32H
Tubeless ready -
Front Tire
Schwalbe Johnny Watts 29×2.35″ Wired -
Rear Tire
Schwalbe Johnny Watts 29×2.35″ Wired -
Lights
Supernova integrated M99 mini Pure-25 / 600 Lumen front light
Rear Supernova Taillight -
Rack
Axis EVO by Racktime SnapIt 2.0 15KG -
Pedals
VP VPE-506 -
Extras
Wingee alloy profile Fender / Ursus Kickstand -
Approx weight in KG
26.6 -
Approx weight in LBS
58.64 -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
