Descriere
SPECIFICATIONS
-

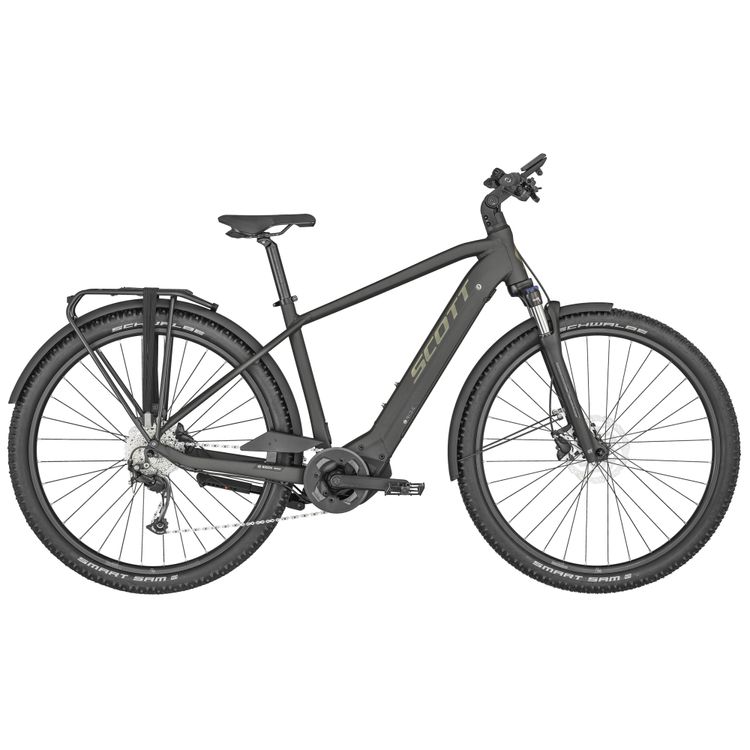

Meet the Sub Cross eRIDE 20, the easy way to explore gravel roads or smooth trails. The bike is equipped with the powerful Bosch Performance CX drive unit and a PowerTube battery intelligently integrated into the frame for a slick design. An adjustable stem and the ergonomic Syncros saddle result in optimal comfort.
Please note that bike specifications are subject to change without prior notice.
-
Frame
Sub eRIDE 6061 Alloy -
Fork
SUNTOUR NVX 30 NLO DS QR 700C TAPERED / 63mm Travel -
Drive Unit
Bosch Performance CX BES3s
EU: 25kmh / US: 20mph -
Battery
500Wh PowerTube Battery
-
Display
Intuvia 100 Display -
Charger
4A Charger -
Rear Derailleur
Shimano Alivio RD M3100SGS 9 Speed -
Shifters
Shimano Alivio SL-M3100 9 Speed -
Crankset
Miranda 172,5mm -
Chainring
38T Chainflow / Chainprotector -
Chain
KMC E9s NPBK -
Cassette
Shimano CS HG400 11-36 -
Brakes
Shimano BR-M200 Disc -
Rotor
180/F SM-RT10 and 160/R SM-RT10 -
Handlebar
Syncros UC3.0 680mm / 10° bend -
H’stem
Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount -
Seatpost
Syncros 3.0 / 31.6mm / 350mm -
Seat
Syncros Capilano -
Headset
Acros / 1.5″- 1.5″
semi integ. OD 50/61mm / ID 44/55mm -
Hub (Front)
Shimano HBMT200B 32H QR CL -
Hub (Rear)
Shimano FHMT200B 32H QR CL -
Spokes
BLACK spokes * F: 14G / R: 13G -
Rims
Cross X17 Disc 32h -
Rear Tire
Schwalbe Smart Sam 29×2.25 -
Rack
Racktime w/ spring clamp SnapIt 2.0 -
Pedals
VPE-506 -
Extras
ABUS Battery Lock -
Accessories
Curana wide extruded fenders, Ursus Mooi Central kickstand -
Approx weight in KG
25.3 -
Approx weight in LBS
55.78 -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
