Descriere
SPECIFICATIONS
-
The power to do more.

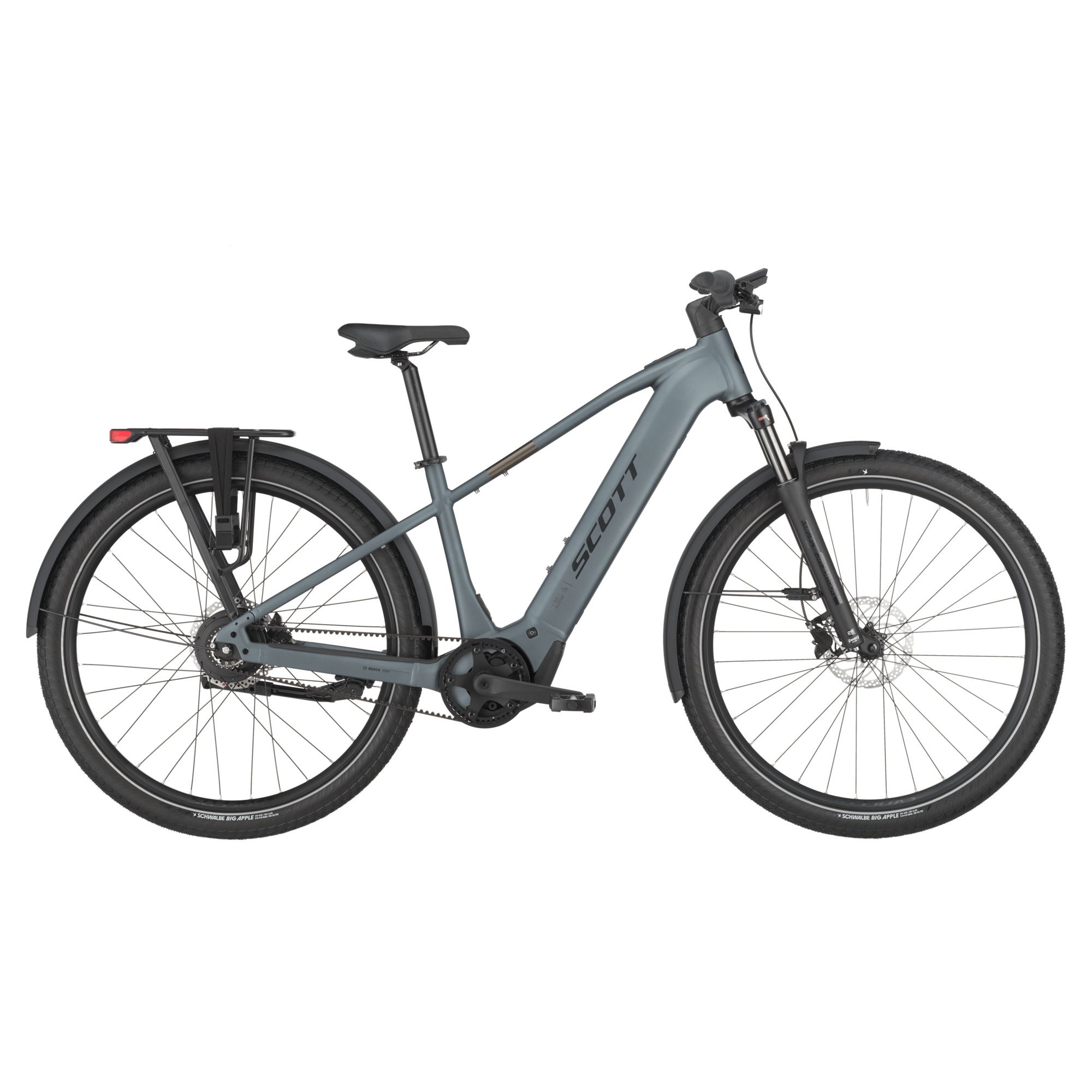

This is the ALL-NEW SCOTT SUB eRIDE: an electric urban bike powered by the ALL-NEW Bosch Performance CX motor and 800Wh battery – goodbye range anxiety.
To minimize maintenance, SUB features a belt-driven drivetrain, no need to oil a chain anymore. Even more? You can now bring along the kids with you thanks to the new Syncros Heavy Duty rack that can carry up to 27kg.
No more barriers. Move with SUB.Please note that bike specifications are subject to change without prior notice
-
Frame
Alloy S-XL=29″ / 6061 Alloy custom butted tubing
Side extraction battery
UDH Interface / 135mm with 46mm Beltline -
Travel
100mm -
Fork
SR Suntour XCM34 LO Coil / Tapered / 15×110 bolt Axle / Lock Out / 100mm Travel -
Drive Unit
Bosch Performance CX
EU: 25kmh
-
Battery
PowerTube 800Wh -
Display
Bosch System Controller
Kiox 300
Mini remote -
Charger
4A Charger -
Shifters
Enviolo Manual Controller -
Crankset
FSA CK-220 170mm -
Chainring
Gates CDX 46T w/Guard -
Chain
Gates CDX 125T -
Cassette
Gates CDX 24T -
Brakes
Shimano BR-MT200 Disc -
Rotor
Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm -
Handlebar
Syncros Forged Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount and Kiox 300 mount -
Seatpost
Syncros 3.0 / 31.6mm / 350mm -
Seat
Syncros Capilano -
Headset
Acros / 1.5″- 1.5″
semi integ. OD 50/61mm / ID 44/55mm -
Hub (Front)
Shimano HBTC50015BB CL / 15x110mm -
Hub (Rear)
Enviolo Trekking -
Spokes
Black Spokes -
Rims
Syncros X18 Disc -
Front Tire
Schwalbe Big Apple Performance
60-622 -
Rear Tire
Schwalbe Big Apple Performance
60-622 -
Lights
Lezyne Fusion E550SM front light
Rear Lezyne Rack Light -
Rack
Racktime carrier SnapIt 2.0 27KG -
Pedals
Marwi SP-828 -
Extras
Curana alloy profile Fender / Ursus Kickstand -
Approx weight in KG
29.4 -
Approx weight in LBS
64.82 -
Max. System Weight
160kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
