Descriere
SPECIFICATIONS
-

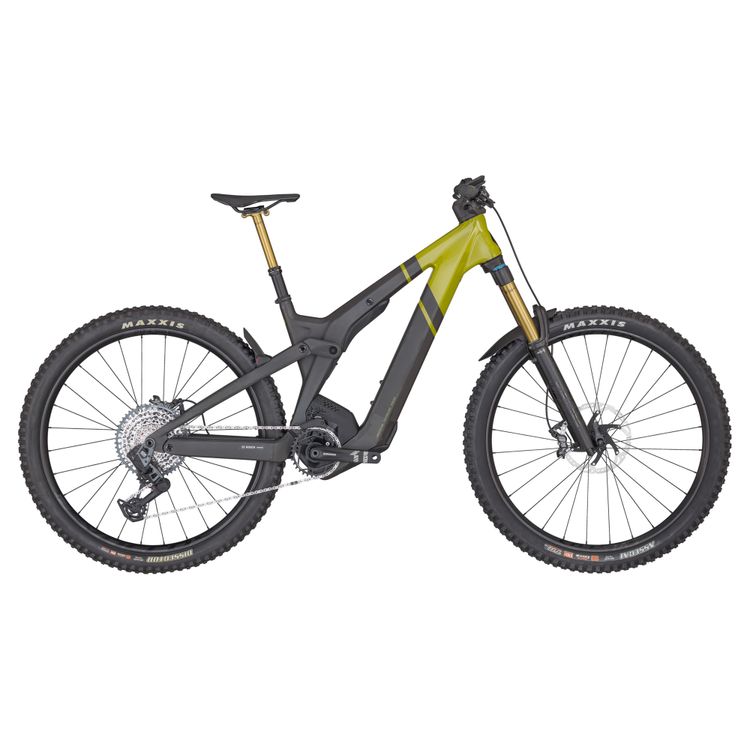

ST for Super Trail, the Patron ST eRIDE 900 Tuned is based on the classic Patron platform but optimized for the ones who like spending more time in the air and in steeper terrain. No Twinloc on the fork, more travel with 170 front and beefier tires. Boss the trails!
Please note that bike specifications are subject to change without prior notice
-
Frame
Carbon Main Frame & SST / Alloy CST-Link
Virtual 4 link kinematic VLK
29×2.6 / Boost 148x12mm UDH
160mm travel / Bosch SmartSystem / Integr. removable Battery
1.8″ Headtube, Central Kickstand Mount
Integr. Cable -
Travel
Front: 170mm / Rear: 160mm -
Fork
FOX 38 FIT Factory Grip 2 Air / Kashima
HSC – LSC – HSR- LSR adjustable / QR Axle 15x110mm
44mm offset / tapered steerer
170mm travel -
Rear Shock
FOX NUDE T eRIDE EVOL Kashima / Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
custom large air volume / DPS / Reb. Adj.
Travel 160-115-Lockout / 205X60mm
-
Remote System
TracLoc Technology
Rear Suspension & Dropper Remote
3 Rear Suspension modes -
Drive Unit
Bosch Performance CX-R
EU: 25kmh / INT: 20mph -
Battery
PowerTube 750Wh -
Display
Bosch LED Remote & Kiox 300 -
Charger
4A Charger -
Rear Derailleur
SRAM GX Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System -
Shifters
SRAM GX Eagle AXS Rocker Controller -
Crankset
SRAM X1 1000 / 165mm -
Chainguide
e*thirteen / e*spec Slider -
Chainring
SRAM Eagle Transmission 34T chainring / Steel -
Chain
SRAM CN GX Eagle Transmission -
Cassette
SRAM GX Eagle XS 1275 Transmission 10-52T -
Brakes
Shimano XT / BR-M8120 4 Piston -
Rotor
Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm -
Handlebar
Syncros Hixon iC SL / 15mm Rise / integrated cockpit
S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension
7° backsweep / 6° upsweep / Syncros Endurance lock-on grips -
Seatpost
FOX Transfer Factory Dropper Post Kashima
31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm -
Seat
Syncros Tofino 1.5 Regular
Titanium rails -
Headset
Acros / 1.8″
ZS66 OD74 / integr. Cable -
Wheelset
Syncros Revelstoke-E 1.5 CL
F: 15x110mm
R: 12x148mm Boost
30mm Tubeless ready rim 28H
Syncros Axle w/Removable Lever with Tool -
Front Tire
Maxxis Assegai 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Rear Tire
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Lights
Syncros integrated rear fender light
Front Light Cable pre-installed -
Extras
Syncros Fork Fender
SRAM AXS Extension Cord -
Approx weight in KG
23.6 (with tubes) -
Approx weight in LBS
52.03 (with tubes) -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
