Descriere
SPECIFICATIONS
-

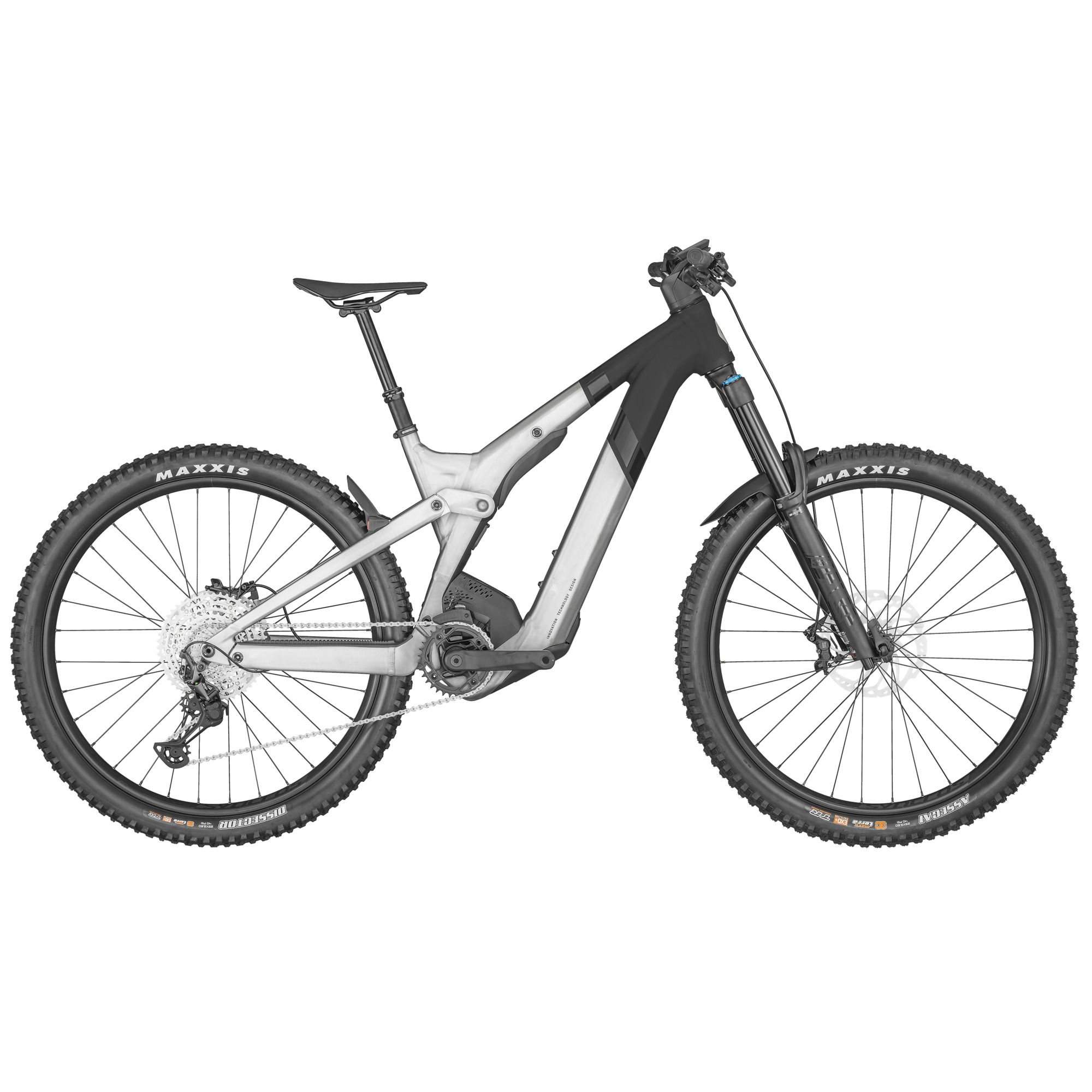

ST for Super Trail, the Patron ST eRIDE 910 is based on the classic Patron platform but optimized for the ones who like spending more time in the air and in steeper terrain. No Twinloc on the fork, more travel with 170 front and beefier tires. Boss the trails!
Please note that bike specifications are subject to change without prior notice
-
Frame
Alloy Frame & Link
Virtual 4 link kinematic VLK
29×2.6 / Boost 148x12mm UDH
160mm travel / Bosch SmartSystem / Integr. removable Battery
1.8″ Headtube
Central Kickstand Mount
Integr. Cable -
Travel
Front: 170mm / Rear: 160mm -
Fork
FOX 38 FIT Perf Grip Air
Adjustable Rebound / QR Axle 15x110mm
44mm offset / tapered steerer
170mm travel -
Rear Shock
FOX Float EVOL eRIDE Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mm
-
Remote System
TracLoc Technology
Rear Suspension & Dropper Remote
3 Rear Suspension modes -
Drive Unit
Bosch Performance CX
EU: 25kmh / INT: 20mph -
Battery
PowerTube 750Wh -
Display
Bosch LED Remote & Kiox 300 -
Charger
4A Charger -
Rear Derailleur
Shimano XT / 12 Speed -
Shifters
Shimano SL-M6100 -
Crankset
FSA CK-745 165mm / 34T -
Chainguide
e*thirteen / e*spec Slider -
Chainring
FSA W0138+WB499 / 34T / Steel -
Chain
Shimano CN-M6100 -
Cassette
Shimano CS-M6100 / 10-51T -
Brakes
Shimano SLX / BR-M7120 4 Piston -
Rotor
Front&Rear: SM-RT70 CL 203mm -
Handlebar
Syncros Hixon 2.0 / Alloy 6061D.B.
12mm rise / 9° / 780mm
Syncros Endurance lock-on grips -
H’stem
Syncros AM2.0 / 6061 Alloy
31.8mm / 4° / 1 1/8″ -
Seatpost
FOX Transfer Dropper Post
31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm -
Seat
Syncros Tofino 2.0 Regular -
Headset
Acros / 1.8″
ZS66 OD74 / integr. Cable -
Hub (Front)
Formula CL-811 / 15x110mm -
Hub (Rear)
Formula ECT-148M / Boost 148x12mm -
Spokes
Stainless Black -
Rims
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
Front Tire
Maxxis Assegai 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Rear Tire
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Lights
Syncros integrated rear fender light
Front Light Cable pre-installed -
Extras
Syncros Fork Fender -
Approx weight in KG
26.5 (with tubes) -
Approx weight in LBS
58.42 (with tubes) -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
