SPECIFICATIONS
-

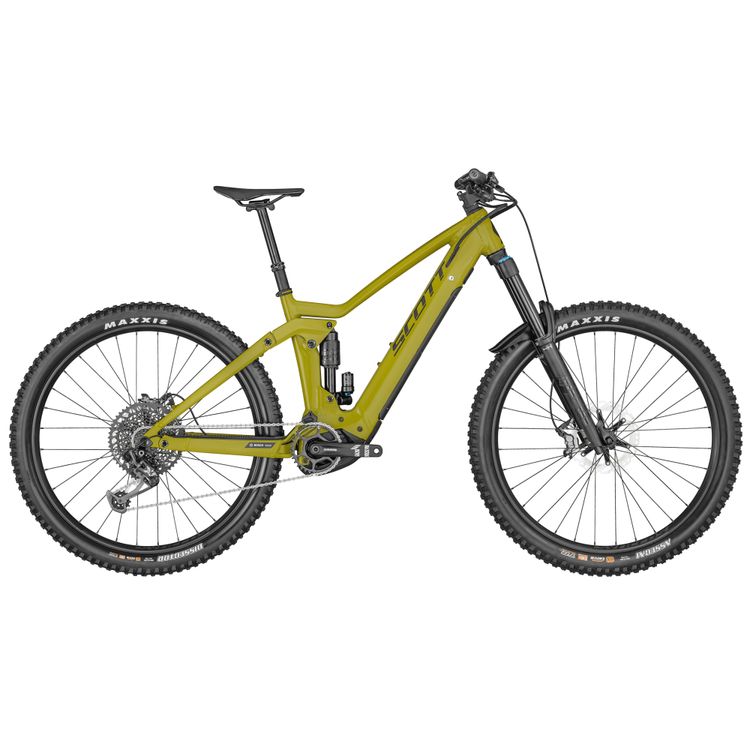

Having won nearly every test in which it was featured, there was only one thing we could do to make the Ransom more fun and versatile: make an E-Bike version. Ransom eRIDE – more ups, more down, more hoots, more hollers, more Ransom.
Please note that bike specifications are subject to change without prior notice
-
Frame
Alloy Frame / Virtual 4 link kinematic VLK
27.5″ and 29″ compatible / geo adj. / Boost 148x12mm
180mm travel / Bosch Gen4 / Integr. removable Battery
Tapered Headtube E2, Central Kickstand Mount -
Travel
Front: 180mm / Rear: 180mm -
Fork
FOX 38 Performance Elite / Air / eMTB+
FIT Grip 2 / LSC-HSC / LSR-HSR / 15x110mm QR axle
tapered steerer / Reb. Adj. / 180mm travel -
Rear Shock
FOX Float X2 Performance / Air
LSC, LSR w/2-Pos. lever
-
Drive Unit
Bosch Performance CX
EU: 25kmh / INT: 20mph -
Battery
PowerTube 625Wh -
Display
Bosch Purion -
Charger
4A Charger -
Rear Derailleur
SRAM X01 Eagle / 12 Speed -
Shifters
SRAM NX Eagle Single Click -
Crankset
SRAM X1 1000 / 165mm / 34T -
Chainguide
SCOTT Custom -
Chainring
SRAM Eagle 34T DM / Steel -
Chain
SRAM NX Eagle -
Cassette
SRAM XG1275 / 10-52 T -
Brakes
Shimano XT / BR-M8120 4 Piston -
Rotor
Front: RT-MT800 CL 203mm / Rear: RT-EM810 CL 203mm -
Handlebar
Syncros Hixon 1.5 Rise / Alloy 2014D.B.
20mm rise / 8° / 800mm
Syncros Pro lock-on grips -
H’stem
Syncros XM1.5 / Alloy 6061
integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8″ -
Seatpost
FOX Transfer Dropper Post
31.6mm / S size 125mm / M size 150mm / size 175mm / XL size 200mm -
Seat
Syncros Tofino 1.5 Regular
Titanium rails -
Headset
Acros Blocklock / Tapered 1.5″-1 1/8″
OD 52/62mm / ID 44/56mm -
Hub (Front)
Formula CL-811 / 15x110mm -
Hub (Rear)
Formula ECT-1481 / Boost 148x12mm -
Spokes
Stainless Black -
Rims
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
Front Tire
Maxxis Assegai 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Rear Tire
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
Lights
Bosch Light Cable pre-installed F&R -
Extras
Syncros Fork Fender -
Approx weight in KG
24.6 (with tubes) -
Approx weight in LBS
54.23 (with tubes) -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
