Descriere
SPECIFICATIONS
-

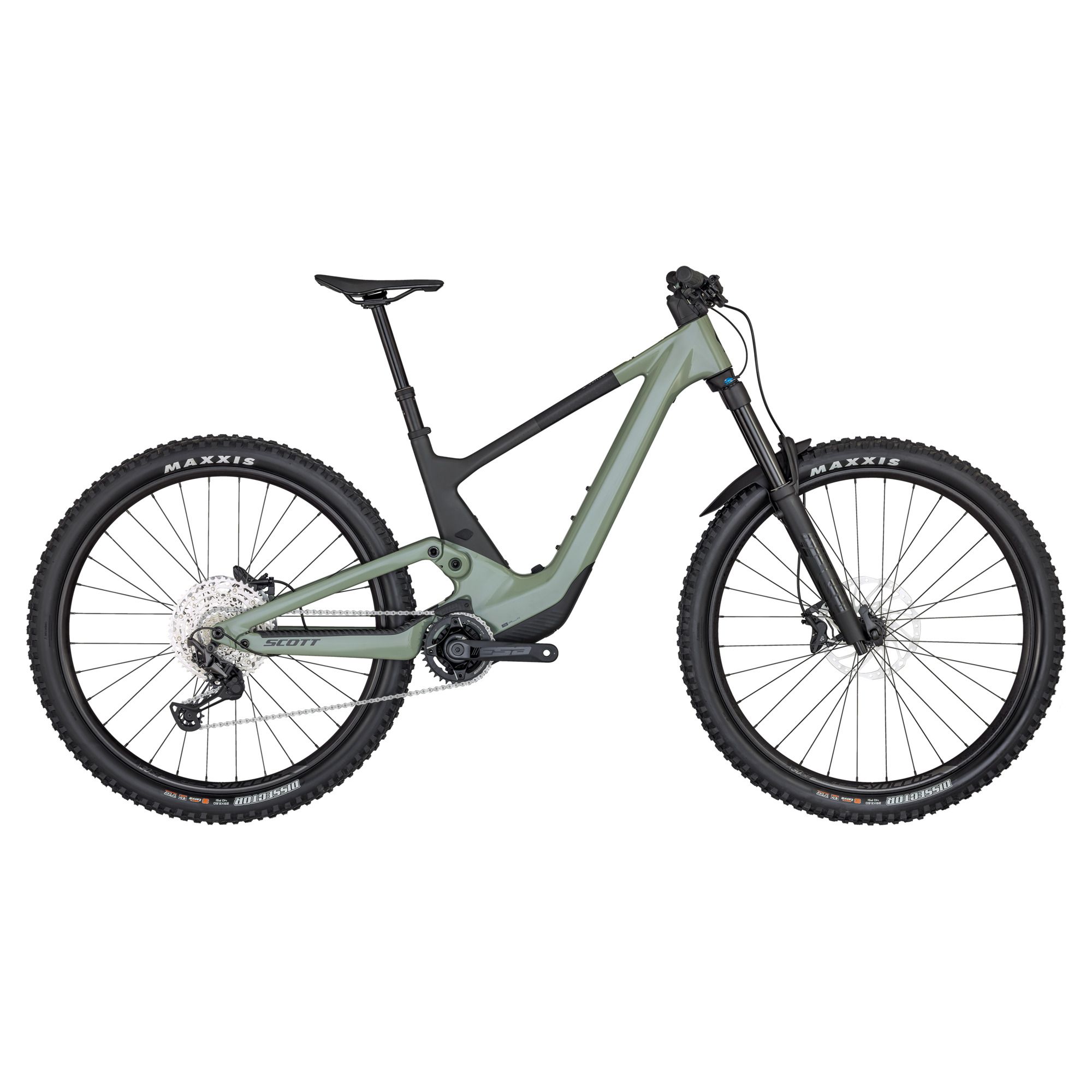

Imagine giving the world’s best trail bike a secret weapon. With the Voltage eRIDE, that’s just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail… after trail.
Please note that bike specifications are subject to change without prior notice
-
Frame
Carbon HMF
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Range Extender Ready -
Travel
Front: 160mm / Rear: 155mm -
Fork
FOX 36 Float Rhythm Air Grip
3 modes / 15x110mm QR axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 160mm travel -
Rear Shock
FOX NUDE 6T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Low Speed Adj. / Custom large Air volume / Reb. Adj.
Travel 155-100-Lockout / T185X55mm
-
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes -
Drive Unit
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph -
Battery
TQ Internal 360Wh -
Display
TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app -
Charger
TQ 100-240V-4A -
Rear Derailleur
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed -
Shifters
Shimano Deore SL-M6100-IR / Rapidfire Plus
I-spec EV clamp -
Crankset
FSA Alloy crankset / 175mm / 34T -
Chainguide
e*thirteen / e*spec Slider -
Chainring
Scott custom spider / FSA 12Speed 34T chainring -
Chain
Shimano CN-M6100 -
Cassette
Shimano CS-M6100 / 10-51 T -
Brakes
Shimano Deore M6120 4-Piston Disc -
Rotor
Shimano SM-RT64 CL / F&R 203mm -
Handlebar
Syncros Hixon 1.5 Alloy 7050
Size S & M 15mm rise / Size L & XL 25mm rise
back sweep 8° / 780mm
Syncros Endurance lock-on grips -
H’stem
Syncros AM 1.5
Syncros Cable Integration System
4° rise / 7050 Alloy / 31.8mm / 1 1/8″ -
Seatpost
Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm
S size 140mm / M size 180mm / L & XL size 210mm -
Seat
Syncros Tofino 1.5 Regular
Titanium rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
Stainless / +-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Hub (Front)
Formula CL-811 / 15x110mm -
Hub (Rear)
Formula CL-148M / 12x148mm -
Spokes
Stainless Black 15G / 1.8mm -
Rims
Syncros X-30S / 32H / 30mm / Sleeve Joint
Tubeless ready -
Front Tire
Maxxis Dissector / 2.6″ / 60TPI Foldable
Tubeless Ready / EXO 3C maxx Terra -
Rear Tire
Maxxis Dissector / 2.6″ / 60TPI Foldable
Tubeless Ready / EXO 3C maxx Terra -
Extras
Syncros Fork Fender -
Approx weight in KG
19.5 (with tubes) -
Approx weight in LBS
42.99 (with tubes) -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
