SPECIFICATIONS
-

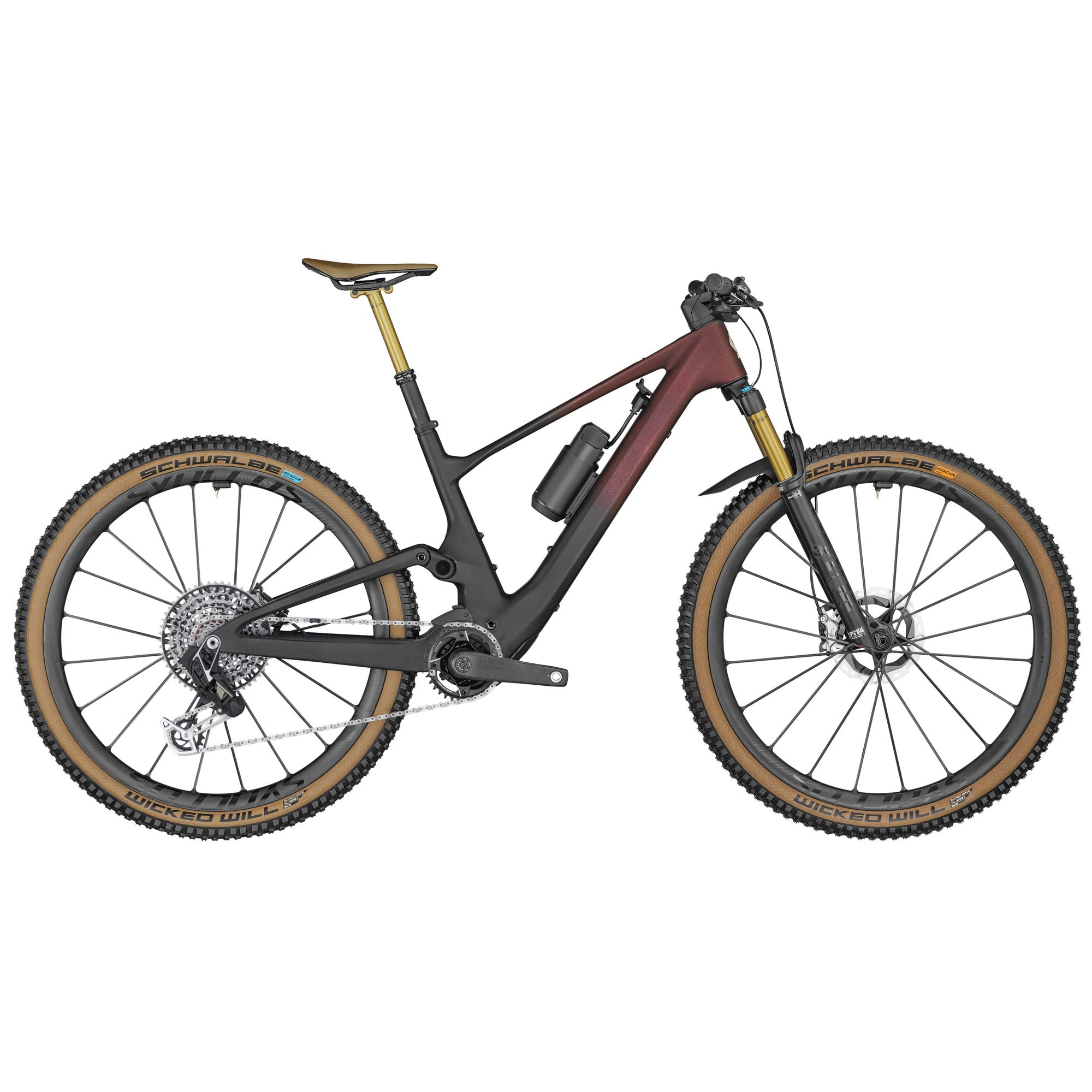

An E-MTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.
Please note that bike specifications are subject to change without prior notice
-
Frame
Carbon HMX
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline -
Travel
Front: 130mm / Rear: 130mm -
Fork
FOX 34 Float Factory Air / Kashima FIT4
3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset
Tapered steerer / Lockout / Reb. Adj.
130mm travel -
Rear Shock
FOX NUDE 5T Factory EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Kashima / Reb. Adj.
Travel 130-90-Lockout / T165X45mm
-
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes -
Drive Unit
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph -
Battery
TQ Internal 360Wh + Range Extender 160Wh -
Display
TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app -
Charger
TQ 100-240V-4A -
Rear Derailleur
SRAM XX Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System -
Shifters
SRAM AXS Pod Ultimate Controller -
Crankset
FSA Carbon crankset / 175mm / 34T -
Chainguide
e*thirteen / e*spec Slider -
Chainring
Scott custom spider / SRAM Eagle Transmission 34T chainring -
Chain
SRAM CN XX Eagle Transmission -
Cassette
SRAM XX Eagle XS 1297 Transmission 10-52 -
Brakes
Shimano XTR M9120 4 Piston Disc -
Rotor
Front: RT-MT900 CL 180mm / Rear: RT-EM910 CL 180mm -
Handlebar
Syncros Fraser iC SL DC Carbon
0° rise / back sweep 8° / mini Rise / 760mm
Syncros Performance XC lock-on grips -
Seatpost
FOX Transfer Factory Dropper Post Kashima
31.6mm / S size 125mm / M size 140mm
L ize 150mm / XL size 175mm -
Seat
Syncros Tofino Regular 1.0
Carbon rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
Stainless
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Wheelset
Syncros Silverton SL2-30 CL full Carbon
F: 15x110mm
R: 12x148mm / 30mm Tubeless ready rim
DT Swiss 240 Ratchet EXP 36 / XD Driver
SRAM TyreWiz / Syncros SL Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools -
Front Tire
Schwalbe Wicked Will 29×2.4″ EVO
Super Race / TLE / 67EPI / Addix Speed Soft -
Rear Tire
Schwalbe Wicked Will 29×2.4″ EVO
Super Race / TLE / 67EPI / Addix Speed Grip -
Extras
SRAM AXS Powerpack
Syncros Fork Fender -
Accessories
Syncros Eco Sealant
Transport Axle -
Approx weight in KG
15.5 (Tubeless setup) -
Approx weight in LBS
34.17 (Tubeless setup) -
Max. System Weight
110 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
