Descriere
SPECIFICATIONS
-

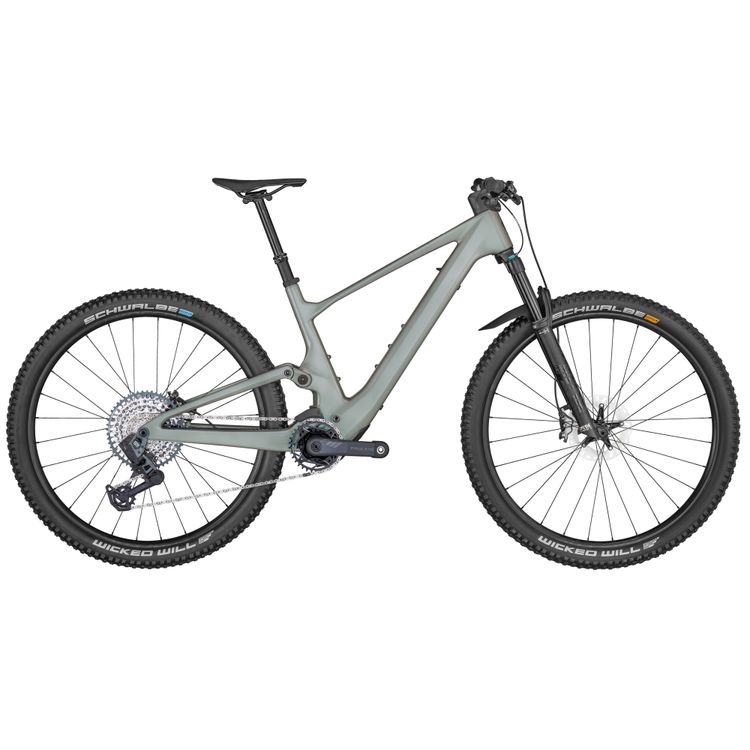

An E-MTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.
Please note that bike specifications are subject to change without prior notice
-
Frame
Carbon HMX
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline -
Travel
Front: 130mm / Rear: 130mm -
Fork
FOX 34 Float Performance Elite Air FIT4
3-Modes with low Speed adj. / Kabolt 15x110mm axle
44mm offset / tapered steerer / Reb. Adj. / Lockout
130mm travel -
Rear Shock
FOX NUDE 5T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Reb. Adj.
Travel 130-90-Lockout / T165X45mm
-
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes -
Drive Unit
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph -
Battery
TQ Internal 360Wh -
Display
TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app -
Charger
TQ 100-240V-4A -
Rear Derailleur
SRAM GX Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System -
Shifters
SRAM GX Eagle AXS Rocker Controller -
Crankset
FSA Carbon crankset / 175mm / 34T -
Chainguide
e*thirteen / e*spec Slider -
Chainring
Scott custom spider / SRAM Eagle Transmission 34T chainring -
Chain
SRAM CN GX Eagle Transmission -
Cassette
SRAM GX Eagle XS 1275 Transmission 10-52 -
Brakes
Shimano XT / BR-M8120 4 Piston -
Rotor
Front: RT-MT800 CL 180mm / Rear: RT-EM810 CL 180mm -
Handlebar
Syncros Fraser iC SL DC Carbon
0° rise / back sweep 8° / mini Rise / 760mm
Syncros Performance XC lock-on grips -
Seatpost
FOX Transfer Dropper Post
31.6mm / S size 125mm / M size 140mm
L size 150mm / XL size 175mm -
Seat
Syncros Tofino 1.5 Regular
Titanium rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
Stainless
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Wheelset
Syncros Silverton 1.5-30 CL
F: 15x110mm
R: 12x148mm
30mm Tubeless ready rim 28H / XD Driver
Syncros Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools -
Front Tire
Schwalbe Wicked Will 29×2.4″ EVO
Super Race / TLE / 67EPI / Addix Speed Soft -
Rear Tire
Schwalbe Wicked Will 29×2.4″ EVO
Super Race / TLE / 67EPI / Addix Speed Grip -
Extras
SRAM AXS Powerpack
Syncros Fork Fender -
Accessories
Syncros Eco Sealant
Transport Axle -
Approx weight in KG
16.3 (Tubeless setup) -
Approx weight in LBS
35.94 (Tubeless setup) -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
