Descriere
SPECIFICATIONS
-

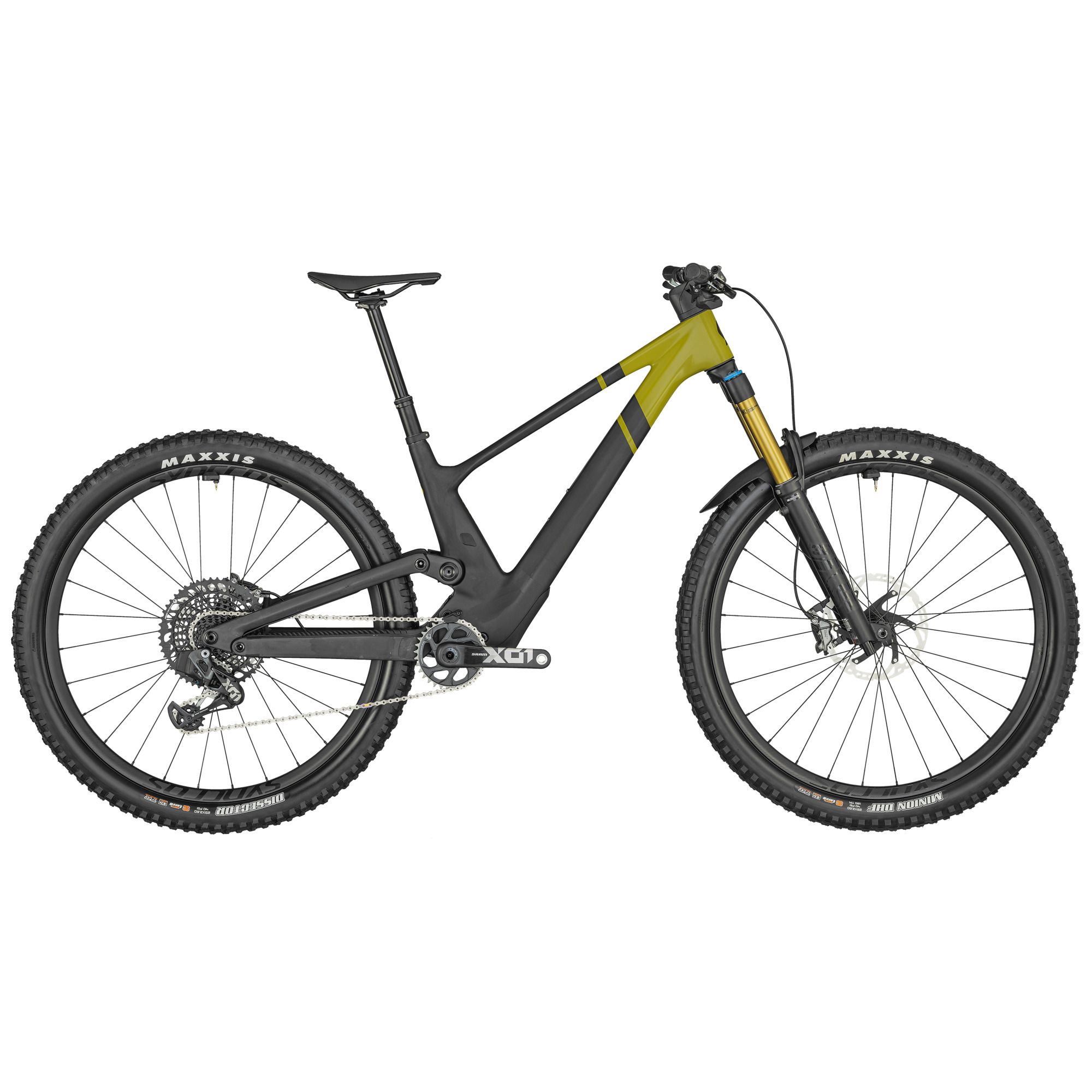

Made to go up the mountain in a hurry, and down the mountain even faster. The all new Genius ST features a custom Float X Nude shock from FOX and is the perfect bike for those who have an insatiable hunger for rippin’ trail.
Please note that bike specifications are subject to change without prior notice.
-
Frame
Genius Carbon HMX
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline -
Fork
FOX 36 Float Factory Grip 2 Air / Kashima
HSC – LSC – HSR- LSR adjustable / Kabolt 15x110mm axle
44mm offset / tapered steerer
160mm travel -
Rear Shock
FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion
Kashima / SCOTT custom w. travel / geo adj.
3 modes: Climb-Traction Control-Descend
Custom large Air volume / Comp & Reb. Adj.
Travel 150-100-Climb / T185X55mm -
Remote System
TracLoc Technology
Rear Suspension & Dropper Remote
3 Rear Suspension modes
-
Rear Derailleur
SRAM X01 Eagle AXS / 12 Speed
Wireless Electronic Shift System -
Shifters
SRAM GX Eagle AXS Rocker Controller -
Crankset
SRAM X01 DUB Eagle Carbon crankarm
55mm CL / 32T -
BB-Set
SRAM DUB PF 92 MTB Wide / shell 41x92mm -
Chain
SRAM CN X01 Eagle -
Cassette
SRAM X01 XG1295 / 10-52 T -
Brakes
Shimano XTR M9120 4 Piston Disc -
Rotor
Shimano SM-RT76 / 6 Bolt / 203/F and 180/R -
Handlebar
Syncros Hixon iC Carbon
Size S & M 15mm rise / Size L & XL 25mm rise
back sweep 8° / 780mm
Syncros Endurance lock-on grips -
Seatpost
Syncros Duncan Dropper Post 1.5
31.6mm / S size 140mm / M size 160mm
L size 170mm / XL size 200mm -
Seat
Syncros Tofino 1.5 Regular
Titanium rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
Stainless / +-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Wheelset
Syncros Revelstoke 1.0-30 CL
F: 15x110mm, R: 12x148mm
30mm Tubeless ready Carbon rim 28H
DT Swiss Ratchet Hubs / XD Driver
SRAM TyreWiz / Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools -
Front Tire
Maxxis Minion DHF / 120TPI Foldable
Tubeless Ready / EXO 3C maxxTerra -
Rear Tire
Maxxis Dissector / 60TPI Foldable
Tubeless Ready / EXO 3C maxxTerra -
Extras
SRAM AXS Powerpack
SRAM TyreWiz
Syncros Fork Fender -
Accessories
Syncros Eco Sealant
Transport Axle -
Approx weight in KG
13.3 (Tubeless setup) -
Approx weight in LBS
29.32 (Tubeless setup) -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
