Descriere
SPECIFICATIONS
-

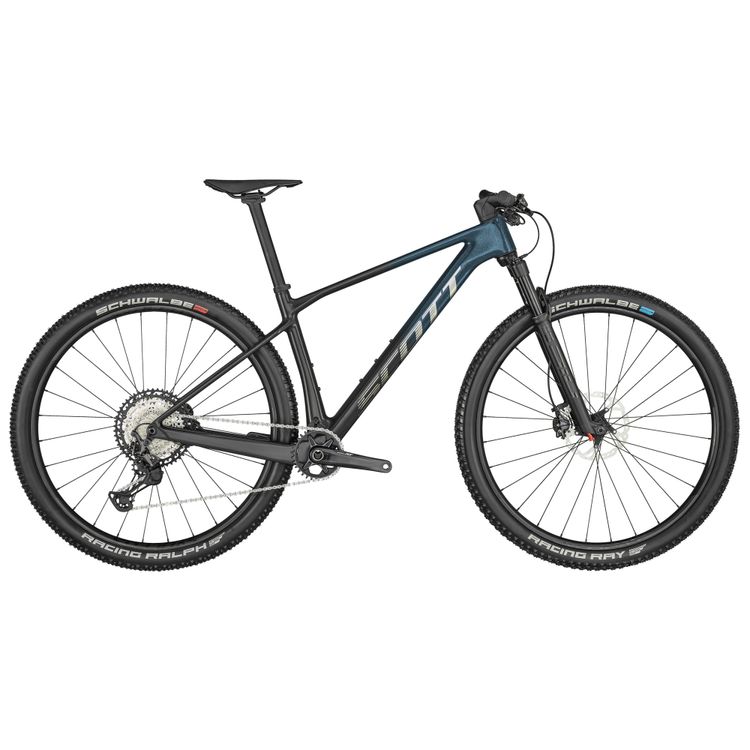

The ALL-NEW Scale RC Team is the perfect blend of stiffness, light weight, and 30 years of carbon expertise. These characteristics, encompassed in an uncompromising frame design decisively accelerate the Scale away from the pack with every pedal stroke. Whenever you find yourself up against the clock, tip the scales in your favor.
Please note that bike specifications are subject to change without prior notice
-
Frame
Scale Carbon HMF
Adjustable head angle / Syncros Cable Integration System
Advanced Shock & Standing Damping System
BB92 / UDH Interface / 12x148mm with 55mm Chainline -
Fork
RockShox SID SL RL Air
15x110mm Maxle Stealth / 44mm offset / Tapered steerer
Lockout / Reb. Adj. / 100mm travel -
Remote System
SCOTT RideLoc 2 Technology
2 Suspension modes -
Rear Derailleur
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed
-
Shifters
Shimano XT SL-M8100-IR / Rapidfire Plus
Ispec EV clamp -
Crankset
Shimano XT FC-M8120-1 / Hollowtech 2
32T -
BB-Set
Shimano SM-BB71-41A / shell 41x92mm -
Chain
Shimano CN-M7100 -
Cassette
Shimano XT CS-M8100-12 / 10-51 T -
Brakes
Shimano XT M8100 Disc -
Rotor
Shimano SM-RT76 / 6 Bolt / 180/F and 160/R -
Handlebar
Syncros Fraser 1.5 XC Alloy 7075 D.B.
Flat Bar / 8° / 740mm
Syncros Performance XC lock-on grips -
H’stem
Syncros XC 1.5
Syncros Cable Integration System
-12° rise / 7050 Alloy / 31.8mm / 1 1/8″ -
Seatpost
Syncros Duncan 2.0
31.6x400mm -
Seat
Syncros Belcarra Regular 2.0
CrMo rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Wheelset
Syncros Silverton 2.0-30 6 Bolt
F: 15x110mm, R: 12x148mm
30mm Tubeless ready rim / 28H / XD Driver
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools -
Front Tire
Schwalbe Racing Ray 29×2.35″ EVO
Super Ground / TLE / 67EPI / Addix Speed Grip -
Rear Tire
Schwalbe Racing Ralph 29×2.35″ EVO
Super Ground / TLE / 67EPI / Addix Speed Grip -
Approx weight in KG
10.6 (Tubeless setup) -
Approx weight in LBS
23.37 (Tubeless setup) -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
