SPECIFICATIONS
-

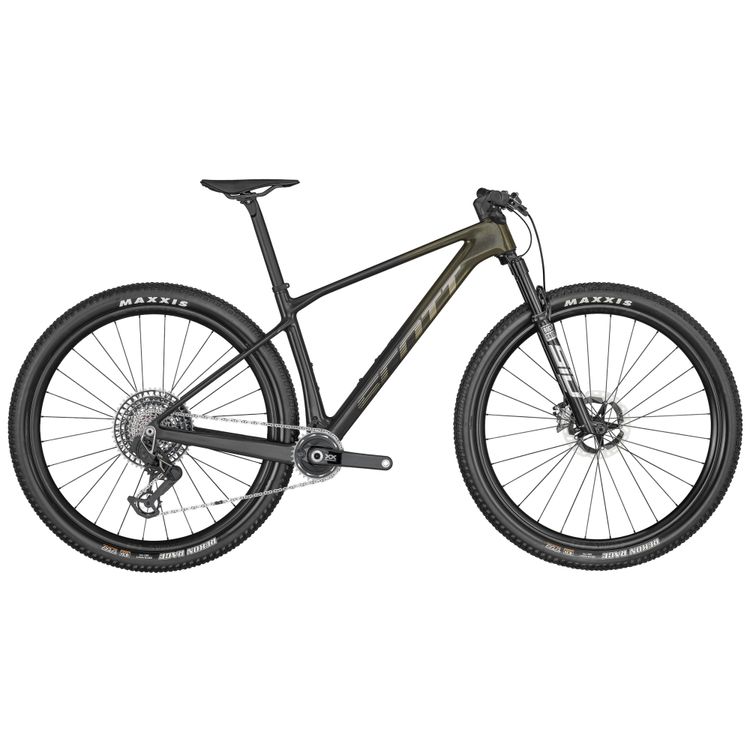

The Scale RC World Cup EVO is the perfect blend of stiffness, light weight, and 30 years of carbon expertise. These characteristics, encompassed in an uncompromising frame design decisively accelerate the Scale away from the pack with every pedal stroke. Whenever you find yourself up against the clock, tip the scales in your favor.
Please note that bike specifications are subject to change without prior notice
-
Frame
Scale Carbon HMX
Adjustable head angle / Syncros Cable Integration System
Advanced Shock & Standing Damping System
BB92 / UDH Interface / 12x148mm with 55mm Chainline -
Fork
RockShox SID SL Ultimate RD3 Air
custom Race Day Charger Damper 3-Modes
15x110mm Maxle Stealth / 44mm offset /Tapered steerer
Lockout / Reb. Adj. / 100mm travel -
Remote System
SCOTT RideLoc 2 Technology
3 Suspension modes -
Rear Derailleur
SRAM XX SL Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System
-
Shifters
SRAM AXS Rocker Controller -
Crankset
SRAM XX SL Eagle AXS Transmission
Carbon crankarm / Spider Power Meter
DUB / 55mm CL / 32T -
BB-Set
SRAM DUB PF 92 MTB Wide / shell 41x92mm -
Chain
SRAM CN XX SL Eagle Transmission -
Cassette
SRAM XX SL Eagle XS 1299 Transmission 10-52 -
Brakes
Shimano XTR M9100 Disc -
Rotor
Shimano RT-MT900 CL / 180/F and 160/R -
Handlebar
Syncros Fraser iC SL XC Carbon
-12° rise / back sweep 8° / 740mm
Syncros Performance XC lock-on grips -
Seatpost
Syncros Duncan 1.0 Carbon
10mm offset / 31.6x400mm -
Seat
Syncros Belcarra 1.0 Regular 1.0
Carbon rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
Stainless
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Wheelset
DT Swiss XRC1200 CL
F: 15x110mm
R: 12x148mm
30mm Tubeless ready Carbon rims 28H / XD Driver
Syncros SL Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools -
Front Tire
Maxxis Rekon Race / 29×2.4″ / 120TPI Foldable Bead
Tubeless Ready / EXO -
Rear Tire
Maxxis Rekon Race / 29×2.4″ / 120TPI Foldable Bead
Tubeless Ready / EXO -
Extras
SRAM AXS Powerpack -
Approx weight in KG
9.2 (Tubeless setup) -
Approx weight in LBS
20.28 (Tubeless setup) -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
