SPECIFICATIONS
-

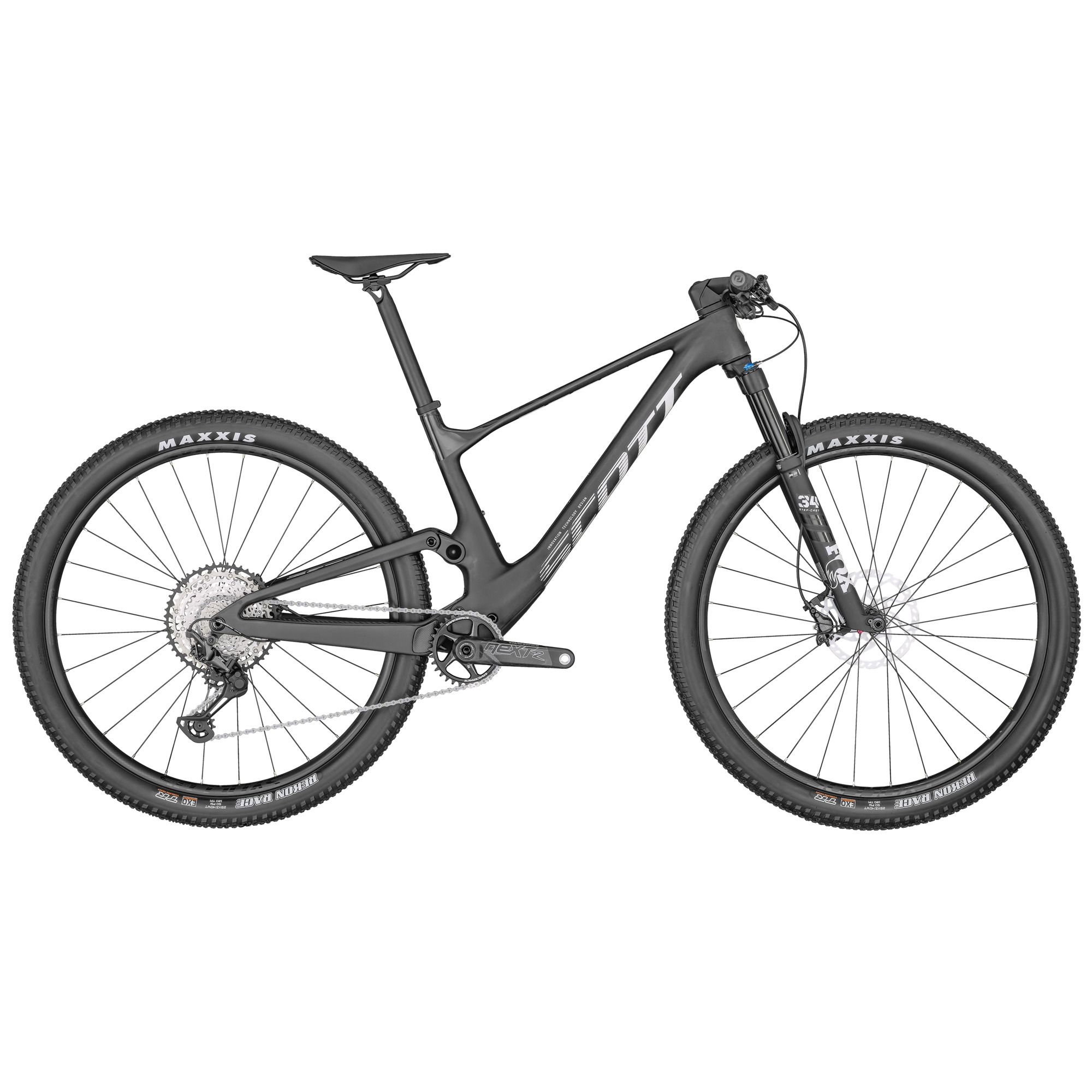

The Spark RC Team is the perfect blend of top-notch carbon engineering, never before seen levels of integration and just the right amount of secret sauce. We wanted to make this platform faster than ever before both up and down the hill. Increasing travel, perfecting geometry, and applying input from the world’s best athletes, we’ve created the cross country race bike of all cross country race bikes. If you think fast is fun, then you’re going to love this ride.
Please note that bike specifications are subject to change without prior notice.
-
Frame
Spark RC Carbon HMF
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline -
Fork
FOX 34 SC Float Performance Air Grip
3-Modes / Kabolt 15x110mm axle / 44mm offset / tapered steerer
Reb. Adj. / Lockout / 120mm travel -
Rear Shock
FOX NUDE 5 EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
DPS / Reb. Adj. / Travel 120-80-Lockout / T165X45mm -
Remote System
SCOTT TwinLoc 2 Technology
3 Suspension modes
-
Rear Derailleur
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed -
Shifters
Shimano XT SL-M8100-IR / Rapidfire Plus
Ispec EV clamp -
Crankset
Shimano XT FC-M8120-1 / Hollowtech 2
32T -
BB-Set
Shimano SM-BB71-41A / shell 41x92mm -
Chain
Shimano SLX CN-M7100 -
Cassette
Shimano SLX CS-M7100-12 / 10-51 T -
Brakes
Shimano XT M8100 Disc -
Rotor
Shimano SM-RT66 / 6 Bolt / 180/F and 160/R -
Handlebar
Syncros Fraser 2.0 XC Alloy 6061 D.B.
Flat Bar / 8° / 740mm
Syncros Performance XC lock-on grips -
H’stem
Syncros XC 2.0
Syncros Cable Integration System
-12° rise / 6061 Alloy / 31.8mm / 1 1/8″ -
Seatpost
Syncros Duncan 2.0 / 10mm offset
31.6x400mm -
Seat
Syncros Belcarra Regular 2.0
CRMO rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Wheelset
Syncros Silverton 2.5-30 6 Bolt
F: 15x110mm, R: 12x148mm
30mm Tubeless ready rim / 28H / Micro Spline
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools -
Front Tire
Maxxis Rekon Race / 29×2.4″ / 60TPI Foldable Bead
Tubeless Ready / EXO -
Rear Tire
Maxxis Rekon Race / 29×2.4″ / 60TPI Foldable Bead
Tubeless Ready / EXO -
Accessories
Transport Axle -
Approx weight in KG
11.7 (Tubeless setup) -
Approx weight in LBS
25.79 (Tubeless setup) -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
