SPECIFICATIONS
-

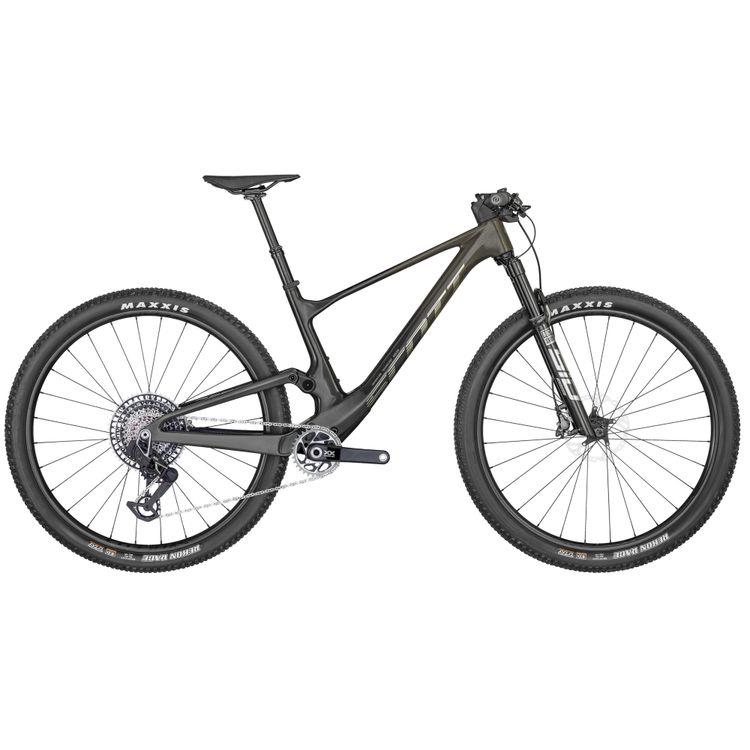

The Spark RC World Cup EVO is the perfect blend of top-notch carbon engineering, never before seen levels of integration and just the right amount of secret sauce. We wanted to make this platform faster than ever before both up and down the hill. Increasing travel, perfecting geometry, and applying input from the world’s best athletes, we’ve created the cross country race bike of all cross country race bikes. If you think fast is fun, then you’re going to love this ride.
Please note that bike specifications are subject to change without prior notice
-
Frame
Spark RC Carbon HMX
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline -
Fork
RockShox SID Ultimate RD3 Air
Custom Race Day Charger 3-Mode Damper
15x110mm Maxle Stealth / 44mm offset /Tapered steerer
Lockout / Reb. Adj. / 120mm travel -
Rear Shock
RockShox NUDE 5 RLC3 Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Low Speed Ad.j / Debon Air / Reb. Adj./ Travel 120-80-Lockout / T165X45mm -
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
-
Rear Derailleur
SRAM XX SL Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System -
Shifters
SRAM Eagle AXS Rocker Controller -
Crankset
SRAM XX Eagle Transmission
Carbon crankarm
DUB / 55mm CL / 32T -
BB-Set
SRAM DUB PF 92 MTB Wide / shell 41x92mm -
Chain
SRAM CN XX SL Eagle Transmission -
Cassette
SRAM XX SL Eagle XS 1299 Transmission 10-52 -
Brakes
Shimano XTR M9100 Disc -
Rotor
Shimano RT-MT900 CL / 180/F and 160/R -
Handlebar
Syncros Fraser iC SL XC Carbon
-12° rise / back sweep 8° / 740mm
Syncros Performance XC lock-on grips -
Seatpost
FOX Transfer SL Performance Elite Dropper Post
31.6mm / S size 75mm / M
L & XL size 100mm -
Seat
Syncros Belcarra 1.0 Regular 1.0
Carbon rails -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
Stainless
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Wheelset
Syncros Silverton 1.0S-30 CL
F: 15x110mm
R: 12x148mm
30mm Tubeless ready Carbon rim 28H
DT Swiss 240 Ratchet EXP 36 / XD Driver
SRAM TyreWiz / Syncros SL Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools -
Front Tire
Maxxis Rekon Race / 29×2.4″ / 120TPI Foldable Bead
Tubeless Ready / EXO -
Rear Tire
Maxxis Rekon Race / 29×2.4″ / 120TPI Foldable Bead
Tubeless Ready / EXO -
Extras
SRAM AXS Powerpack
SRAM TyreWiz -
Accessories
Syncros Eco Sealant
Transport Axle -
Approx weight in KG
10.4 (Tubeless setup) -
Approx weight in LBS
22.93 (Tubeless setup) -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
