Descriere
-

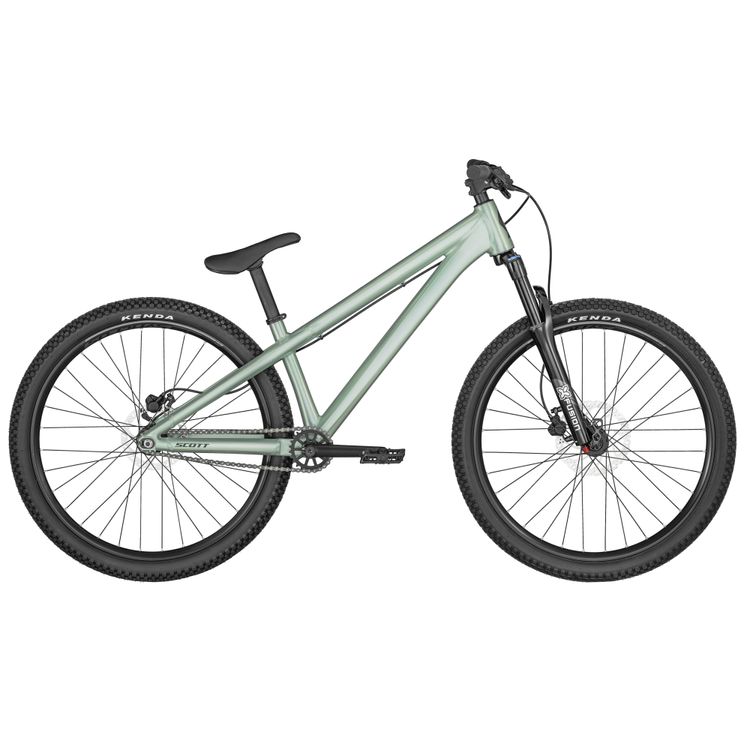

The SCOTT Voltage YZ 0.1 is our Pro riders replica bike built around a high-end Alloy dirtjump mountain bike frame. Equipped with ultashort adjustable chain stays, a tapered headtube and high-end components, this bike is perfect for hitting the pumptrack, the dirtjumps, or jibbin’ through the streets.
Please note that bike specifications are subject to change without prior notice
condition of usage 5Example Downhill, dirt jump, freeride
Please check the detail for more information -
Frame
Voltage YZ DJ 6061 Alloy
Hydroformed tubing
Disc Dropout / horizontal for 135x10mm single speed -
Fork
X-Fusion Slant DJ
100mm travel / Air / Lo Comp / Rebound -
Crankset
SCOTT Cr-Mo 3-piece cranks
170mm / 25T Alloy BMX sprocket -
BB-Set
Jien-Yuan BB92 / 19mm Axle
-
Chain
KMC Z510 -
Cassette
Sprocket / 12 T -
Brakes
Tektro HDM275 Hydr. Disc -
Rotor
Tektro / 6 Bolt / 160mm -
Handlebar
Syncros Hixon 2.0 Rise
31.8mm / 800mm / 20mm Rise
Syncros Pro DH lock-on grips -
H’stem
Syncros XM1.5
31.8mm / 40mm / 0° -
Seatpost
Syncros DJ1.5 / Pivotal / 31.6mm -
Seat
Syncros DJ1.5 / Pivotal -
Headset
Syncros OE Press Fit E2 Tapered 1.5″-1 1/8″
OD 50/62mm / ID 44/56mm -
Hub (Front)
Formula DC-51 / 100x15mm / thru axle -
Hub (Rear)
Formula DC42-N
w/tracknut / single Speed -
Spokes
Stainless 14G / black / 2.0mm -
Rims
Syncros MD25 Disc / 32H -
Front Tire
Kenda K905 K-RAD
30TPI / wire / 26×2.3″ -
Rear Tire
Kenda K905 K-RAD
30TPI / wire / 26×2.3″ -
Pedals
Wellgo B107.N flat -
Approx weights in KG
12.8 (with tubes) -
Approx weights in LBS
28.22 (with tubes) -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
