SPECIFICATIONS
-

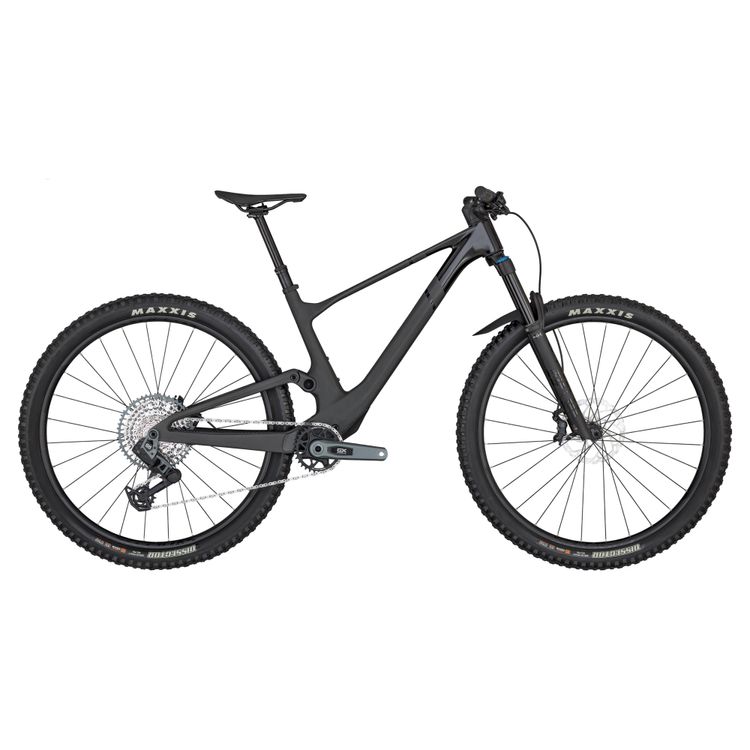

Our Spark ST line of bikes takes a classic Spark 900 vibe and adds suspension components for those aiming to spend a bit more time losing elevation. Now with a custom Float x NUDE from FOX, this short travel trail bike is as capable as ever.
Please note that bike specifications are subject to change without prior notice
-
Frame
Spark ST Carbon HMF
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline -
Fork
FOX 34 Float Performance Elite Grip 2 Air
HSC – LSC – HSR- LSR adjustable / Kabolt 15x110mm axle
44mm offset / tapered steerer
140mm travel -
Rear Shock
FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Climb-Traction Control-Descend
Custom large Air volume / Comp & Reb. Adj.
Travel 120-80-Climb / T165X45mm -
Remote System
TracLoc Technology
Rear Suspension & Dropper Remote
3 Rear Suspension modes
-
Rear Derailleur
SRAM GX Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System -
Shifters
SRAM GX Eagle AXS Rocker Controller -
Crankset
SRAM GX Eagle Transmission
DUB / 55mm CL / 32T -
BB-Set
SRAM DUB PF 92 MTB Wide / shell 41x92mm -
Chain
SRAM CN GX Eagle Transmission -
Cassette
SRAM GX Eagle XS 1275 Transmission 10-52 -
Brakes
Shimano SLX M7120 4 Piston Disc -
Rotor
Shimano SM-RT66 / 6 Bolt / F&R 180mm -
Handlebar
Syncros Fraser iC SL DC Carbon
0° rise / back sweep 8° / mini Rise / 780mm
Syncros Endurance lock-on grips -
Seatpost
Syncros Duncan Dropper Post 1.5
31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm -
Seat
Syncros Tofino 2.5 Regular -
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Wheelset
Syncros Silverton 2.5-30 6 Bolt
F: 15x110mm
R: 12x148mm
30mm Tubeless ready rim 28H / XD Driver
Syncros Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools -
Front Tire
Maxxis Dissector / 2.4WT” / 60TPI Foldable
Tubeless Ready / EXO 3C maxx Terra -
Rear Tire
Maxxis Dissector / 2.4WT” / 60TPI Foldable
Tubeless Ready / EXO 3C maxx Terra -
Extras
SRAM AXS Powerpack
Syncros Fork Fender -
Approx weight in KG
12.7 (Tubeless setup) -
Approx weight in LBS
28.00 (Tubeless setup) -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
